34 33 071 Replacing vacuum hose for brake booster (N43)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

READ AND COMPLY WITH GENERAL INFORMATION .
Remove lower section of microfilter housing
Remove ignition coil cover

IMPORTANT: Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake servo. This makes it easier to detach the vacuum hose.

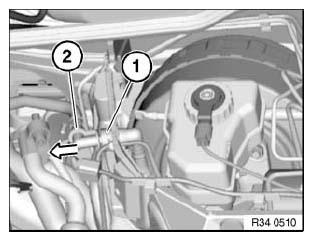

Fig 1: Pulling Vacuum Line And Quick-Release Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock quick-release fastener (1) and pull out vacuum line (2).

Unlock quick-release coupling (1) and detach vacuum line.

Disconnect vacuum hose (2) from vacuum line.

Release vacuum hose at clamp (3) and remove.

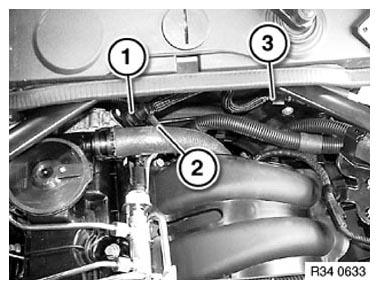

Fig 2: Identifying Quick-Release Coupling, Vacuum Hose And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
