13 54 030 Removing and installing/sealing throttle body (N47 D16/20 K/U/O/T 1)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: READ and comply with notes on protection against electrostatic discharge (ESD protection).

Necessary preliminary tasks:

Switch off ignition.
Remove PRESSURE PIPE .
If fitted:
Remove acoustic cover at front.

Release and detach plug connections (1) at throttle body and intake air temperature sensor.

Fig 1: Identifying Throttle Body And Intake Air Temperature Sensor Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on throttle valve assembly.

Tightening torque 13 54 1AZ .

Feed out and remove throttle body (2).

Installation note:

Replace seals on throttle body and intake air mixing tube.

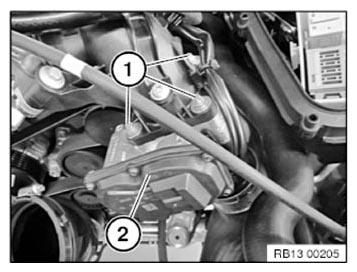

Fig 2: Identifying Throttle Valve Assembly Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On replacement of the throttle body, carry out modifications on the charge air pipe (2).
Release clamps (1) and remove charge air pipe (2) from the throttle body (3).
Replace gasket.

Fig 3: Identifying Charge Air Pipe, Throttle Body And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored fault message.

Clear diagnostic fault entries from fault memory.
