13 53 158 Removing and installing/replacing the pressure accumulator of the injection system (N47 D16/20 K/U/O/T 1)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: When working on the oil, coolant or fuel circuit, you must protect the alternator against contamination.
Cover alternator with suitable materials.
Failure to comply with this procedure may result in an alternator malfunction.

Necessary preliminary tasks:

Remove ACOUSTIC COVER
Remove PRESSURE LINES to injectors.
Remove PRESSURE LINE to high pressure pump.

Recycling:

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

Unlock plug (1) from pressure regulator and detach.

Unlock return line (2) from pressure accumulator and disconnect.

Unlock connector from pressure sensor (3) and detach.

Fig 1: Identifying Pressure Regulator Plug And Pressure Sensor Connector

Courtesy of BMW OF NORTH AMERICA, INC.

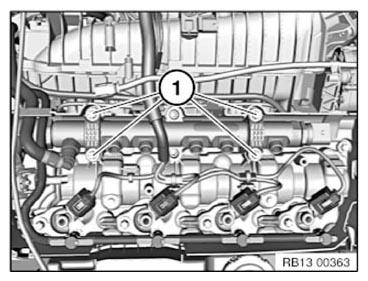

Release screws (1).

Remove pressure accumulator.

Fig 2: Identifying Pressure Accumulator Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly sequence for high-pressure fuel system:

Insert pressure accumulator.
Provisionally fasten all high pressure lines.
Clip pressure accumulator mountings and screw down.
Tighten down high pressure lines on injectors.
Tightening torque 13 53 2AZ .
Tighten down high pressure lines on pressure accumulator.
Tightening torque 13 53 2AZ .
Tighten down high pressure line on high pressure pump.
Tightening torque 13 53 2AZ .

Assemble engine.

Bleed fuel system via BMW diagnosis system.

Check fuel system for tightness.
