13 31 029 Check fuel delivery pressure (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Lines are under pressure!

Wear safety goggles and gloves.

Fuel can emerge spontaneously at high velocity when the fuel line is released!

Recycling:

Catch and dispose of escaping fuel with auxiliary materials.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Connect BMW diagnosis system
Remove rear UNDERBODY PROTECTION .

Unscrew nuts (1).

Remove guard plate (2).

Release fuel lines from protective plate.

Disconnect fuel delivery line.

Catch and dispose of escaping fuel in a suitable container.

Installation note:

Ensure the fuel delivery line is installed correctly (no chafing points).

Make sure retaining tabs latch correctly.

Fig 1: Identifying Guard Plate Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew adapter (1) from special tool 13 5 270 .

Fig 2: Removing Adapter Using Special Tool (13 5 270)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 13 5 270 into disconnected fuel line.

Screw onto special tool 13 5 270 , the special tool 11 4 310 .

Screw IMIB 100 bar pressure sensor (1) on the special tool 11 4 310 .

NOTE: As an alternative to the 100 bar IMIB pressure sensor (1), the 25 bar pressure sensor can also be used. For this, screw on special tool 11 5 364 instead of special tool 11 4 310 onto special tool 13 5 270 . Or directly screw the pressure manometer from the set of special tools 13 3 060 onto the special tool 13 5 270 .

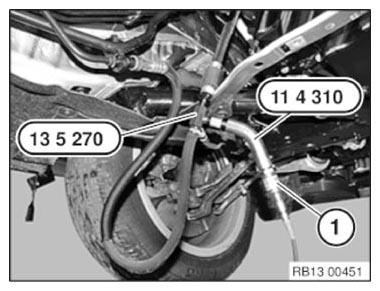

Fig 3: Inserting Special Tool (13 5 270) Into Fuel Line

Courtesy of BMW OF NORTH AMERICA, INC.

Establish fuel delivery pressure. Read off fuel delivery pressure on IMIB and compare with values in diagnosis system.

Assemble engine.

Check fuel system for tightness.
