13 31 025 Check the fuel return pressure (N47 D16 20 K/U/O/T 1)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove REAR UNDERBODY PROTECTION .
Connect BMW diagnosis system.

Recycling:

Catch and dispose of escaping fuel with auxiliary materials.

Observe country-specific waste disposal regulations.

Unscrew nuts (1).

Remove guard plate (2).

Release fuel lines from protective plate.

Fig 1: Identifying Guard Plate Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect fuel return line (1).

Fig 2: Identifying Fuel Return Line

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 13 6 030 into the disconnected return line.

Screw onto special tool 13 6 030 , special tool 11 4 310 .

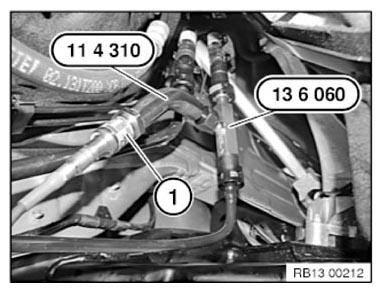

Screw IMIB 100 bar pressure sensor (1) on the special tool 11 4 310 .

Fig 3: Screwing IMIB 100 Bar Pressure Sensor On Special Tool (11 4 310)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: As an alternative to the 100 bar IMIB pressure sensor (1), the 25 bar pressure sensor can also be used. For this, screw on special tool 11 5 364 instead of special tool 11 4 310 onto special tool 13 6 030 . Or directly screw the pressure manometer from the set of special tools 13 3 060 onto the special tool 13 6 030 .

Build up fuel return pressure. Read off fuel return pressure on IMIB and compare with values in diagnosis system.
