32 41 037 Removing and installing power steering pump for power steering gear with Dynamic Drive (M54)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off pipe connections with plugs.
After installation:
- Fill and bleed hydraulic system. See 32 13 006 Bleeding Power Steering Unit .
- Check pipe connections for leaks
- If necessary, carry out initial operation for Dynamic Drive. See INITIALIZING DYNAMIC DRIVE .
Necessary preliminary tasks:
- Draw off and dispose off hydraulic fluid from fluid reservoir. Observe country-specific waste-disposal regulations.
- Remove fan cowl with electric fan. See 17 11 031 REMOVING AND INSTALLING/REPLACING FAN .
- Remove intake filter housing. See INTAKE SILENCER .
- Remove belt pulley. See 32 41 061 Replacing Power Steering Vane Pump .
- Remove front assembly underside protection. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION .
- Disconnect suction and pressure lines from power steering pump

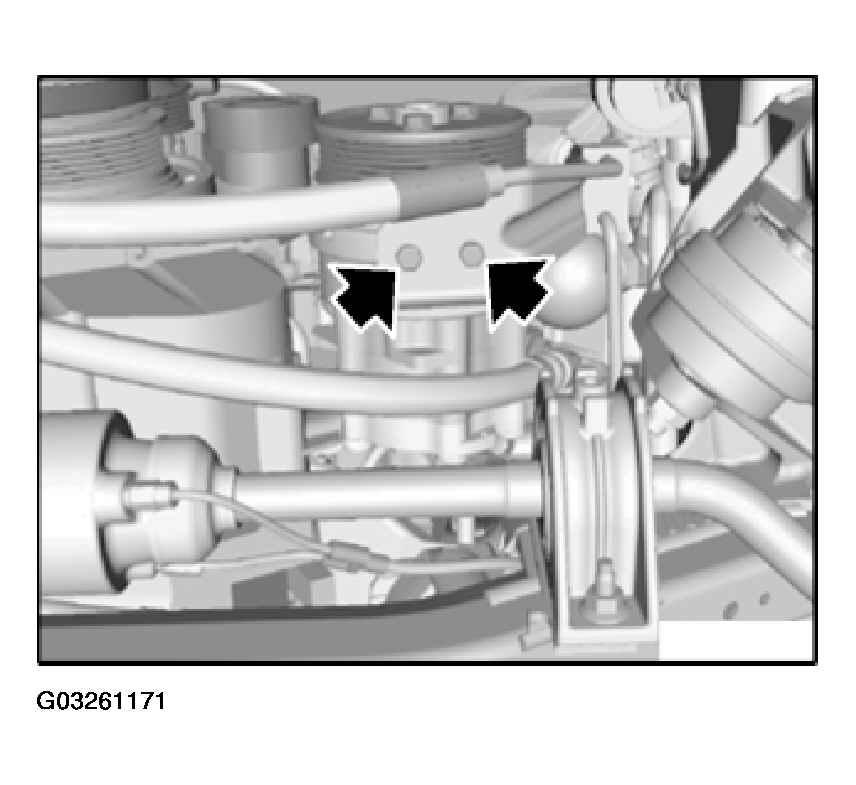

Unfasten screws.
Tightening torque, see 32 41 6AZ in WHEEL & TIRES - TIGHTENING TORQUES .
Remove pressure line with bracket from power steering pump.
Installation:
Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

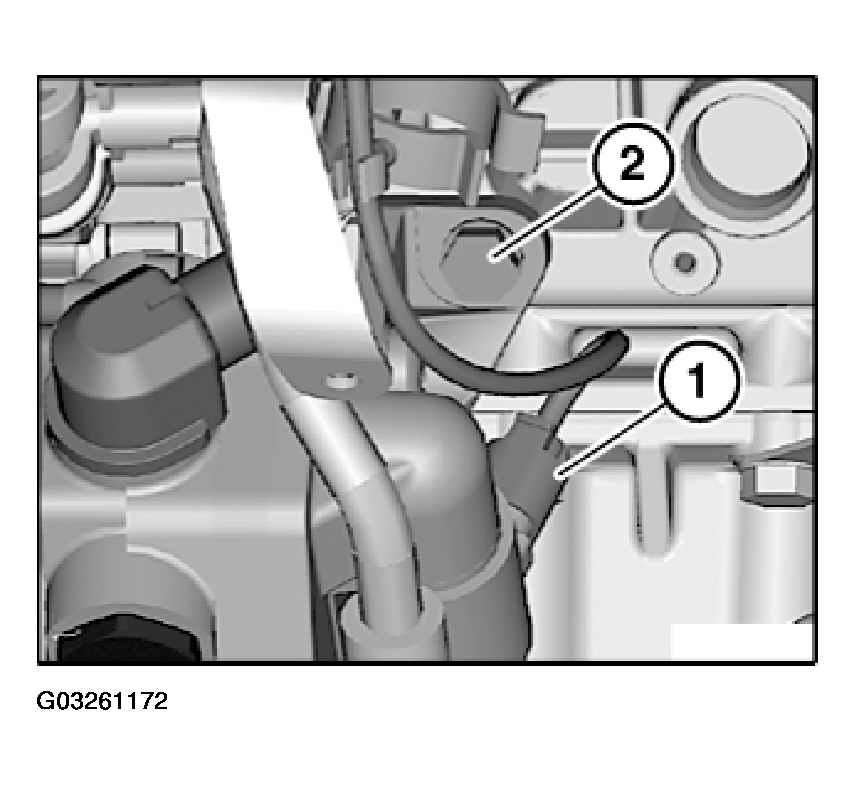

Version with active front steering: Disconnect connector (1).
Release screw (2).
Tightening torque, see 32 41 1AZ in WHEEL & TIRES - TIGHTENING TORQUES .

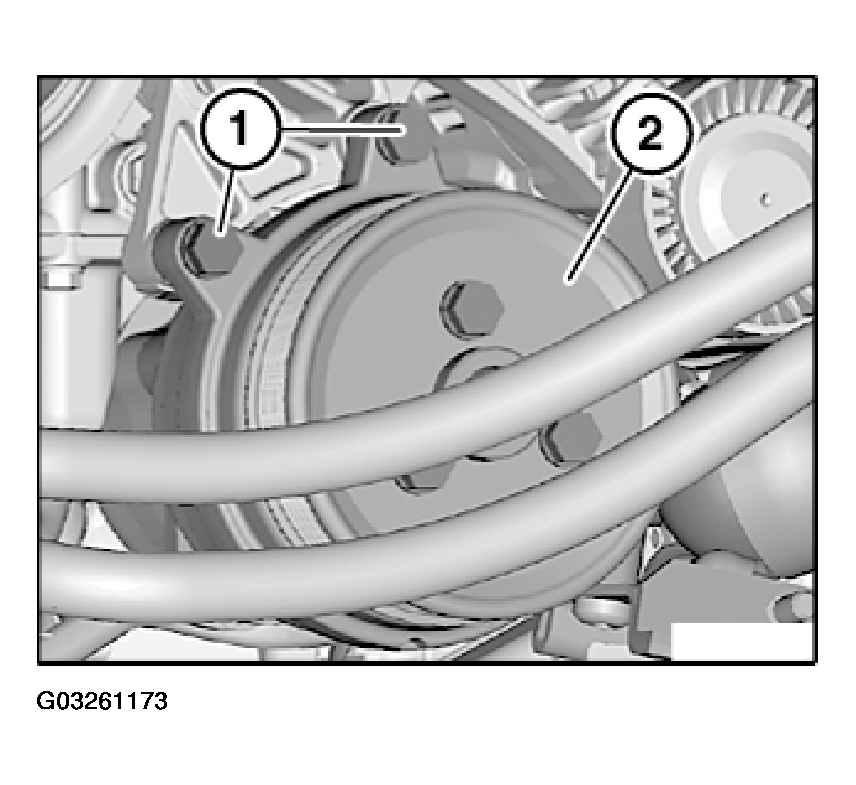

Release screws (1).
Tightening torque, see 32 41 1AZ in WHEEL & TIRES - TIGHTENING TORQUES .
Remove power steering pump (2) towards front.
