51 13 319 Removing and installing or replacing trim strip on roof gutter strip at rear left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Release rear section of TRIM STRIP ON GUTTER STRIP (do not remove)

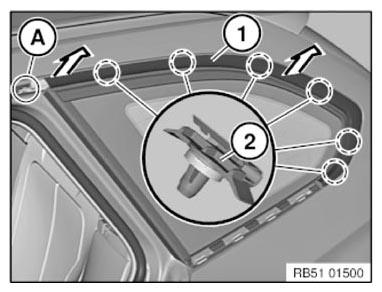

Disengage trim strip (1) in area (A) toward the bottom.

Disengage trim strip (1) in direction of arrow out of clips (2) and remove.

Fig 1: Disengaging Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

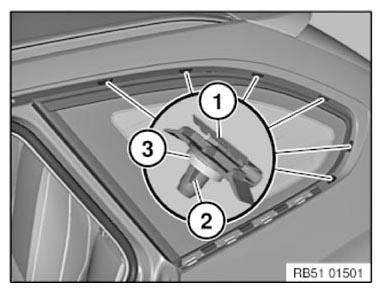

Installation note:

Check all clamps for visible damage.

Following parts must not be damaged, replace if required:

Clamp
Plastic mounting
Gasket

Fig 2: Clamp, Plastic Mounting And Gasket
Courtesy of BMW OF NORTH AMERICA, INC.

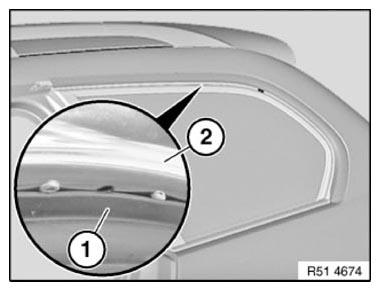

Installation note:

Coat sealing (1) of side window with water.

Firstly thread in trim strip (2) behind sealing (1) then engage in clips.

Sealing (1) must not be trapped by trim strip (2) (risk of damage).

Fig 3: Trim Strip And Sealing

Courtesy of BMW OF NORTH AMERICA, INC.
