51 13 061 Replacing wheel arch trim on front left or right side panel (Japanese national-market version)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

IMPORTANT:

For reasons of optimal adhesion, painting of bonding surfaces on the inside of the wheel arch trim is prohibited!
The application of the adhesive pad (double-sided adhesive tape) onto the wheel arch trim must therefore occur prior to painting the wheel arch trim!

= Wheel arch trim primed
= adhesive pad

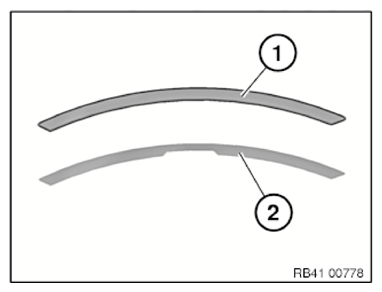

Fig 1: Wheel Arch Trim And Adhesive Pad
Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Carefully heat the wheel arch trim (1) with a hot air blower (temperature approx. 40-55 ° C) and pull off.

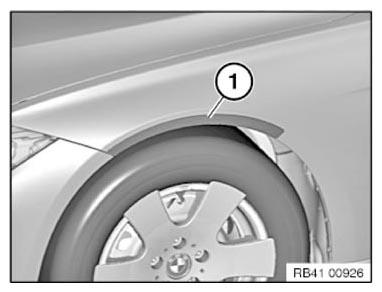

Fig 2: Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull protective film off adhesive pad (double-sided adhesive tape).

Attach wheel arch trim (1) to side wall according to specified dimensions and press down firmly.

Measurement a = approx. 2, 5 mm.

Dimension b = approx. 2.5 - 3.0 mm.

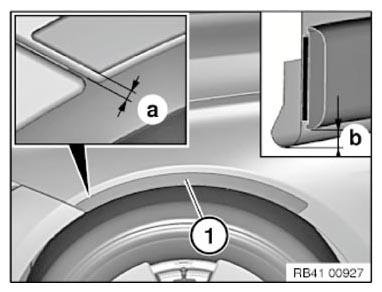

Fig 3: Wheel Arch Trim Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
