51 43 251 Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow SAFETY INSTRUCTIONS for working on vehicles with airbag systems.
IMPORTANT:
Do not use any sharp-edged tools to remove trim panel (risk of damage to head airbag).

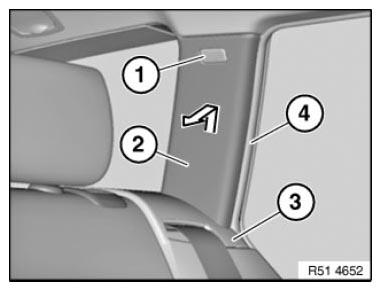

Lever out cap (1) and release screw underneath.
Tightening torque: 51 43 2AZ .
Feed trim panel (2) upwards/inwards out of mounting (3) and remove.
Installation note:
Make sure trim panel (2) is correctly seated in mounting (3) and edge protection (4).
