51 49 013 Removing and installing/replacing the cover for the rear window frame at top

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary work:

Remove COVER FOR REAR WINDOW FRAME LEFT/RIGHT

Unclip cover (1) using special tool 00 9 325 and remove in the direction of arrow.

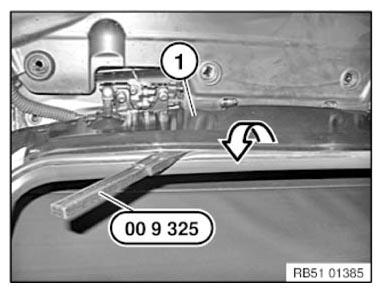

Fig 1: Removing Rear Window Frame Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) on cover (2) must not be damaged or missing.

If necessary, replace clips (1).

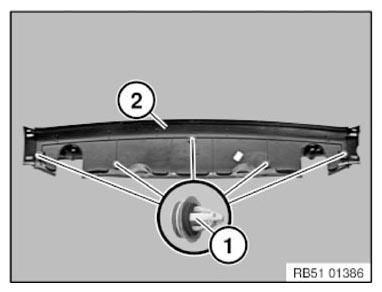

Fig 2: Window Frame Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
