Procedure steps

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

General information

Removing the rear left or right door handle cover
RISK OF DAMAGE

Scratches.

Tools and sharp-edged components can cause scratches.
- Protect working area.
- Handle tools and components carefully.
- Unclip cover (1) starting from below using special tool 0 493 681 (64 1 020) from clamps (2) and latch mechanisms.
- Guide out cover (1) from retaining hook (3).

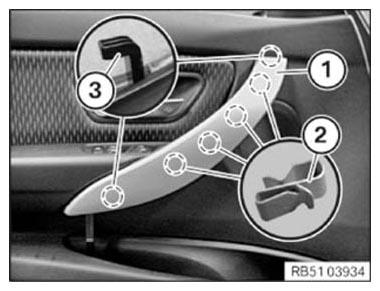

  Fig 1: Removing Door Handle Cover Using Special Tool (64 1 020)
  Courtesy of BMW OF NORTH AMERICA, INC.
Installing the rear left or right door handle cover
RISK OF DAMAGE

Scratches.

Tools and sharp-edged components can cause scratches.
- Protect working area.
- Handle tools and components carefully.
- If clamp (1) is bent up, bend back approx. 45°.
- Replace faulty clamps.
- Make sure clamps (2) and (3) are installed in correct positions.
  - Clamps (2) silver
  - Clamps (3) black
  TECHNICAL INFORMATION

  Disassemble the door handle to replace the clamp.

  For more information see: 51 42 019 Removing and installing or replacing door handle on door trim, rear left or right .
- .

  Fig 2: Door Handle Clamps
  Courtesy of BMW OF NORTH AMERICA, INC.

  TECHNICAL INFORMATION

  Latch mechanisms, guides and mounting elements must not be damaged or missing.
- Check retaining hooks (1) and latch mechanisms on cover (2) for damage, replace if necessary.

  Fig 3: Door Handle Cover Latches And Retaining Hooks
  Courtesy of BMW OF NORTH AMERICA, INC.
- Guide in cover (1) at top retaining hook (3).
- Guide in cover (1) at top retaining hook (3).
- Clip in cover (1) on door trim panel with clamp ((2)).

  Fig 4: Door Trim Panel With Clamp, Retaining Hook And Cover
  Courtesy of BMW OF NORTH AMERICA, INC.
