51 46 050 Removing and installing/replacing top cover on tail panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary work:

Remove TRIM PANEL FOR D-PILLAR ON LEFT AND RIGHT

Release screws (1).

Remove lashing eyes (2). Tightening torque: 51 47 1 AZ .

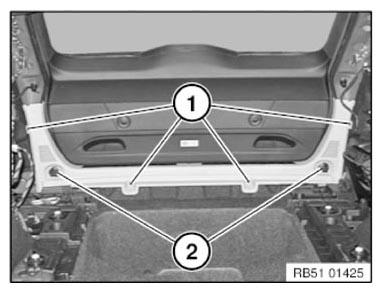

Fig 1: Lashing Eyes And Screw

G10153876

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1) and clamps (2) with special tool 00 9 325 .

Remove trim (3) in direction of arrow.

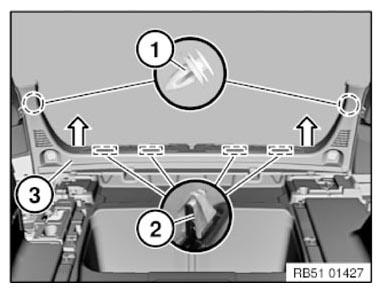

Fig 2: Removing Tail Panel Trim

G10153877

Courtesy of BMW OF NORTH AMERICA, INC.

Clips (1) and clamps (2) must not be damaged or missing.

Replacement:

Replace clips (1) and clamps (2).

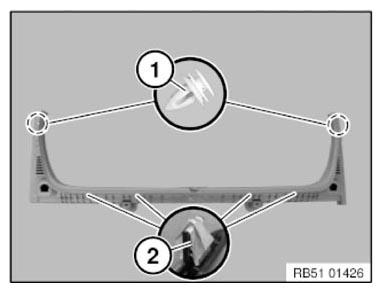

Fig 3: Tail Panel Clips And Clamps

G10153878

Courtesy of BMW OF NORTH AMERICA, INC.
