51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

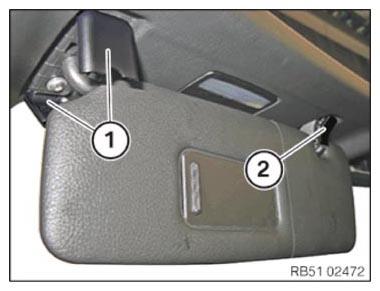

Open the cover (1) and pull out the cover (2).

Fig 1: Sun Visor Cover

G10096980

Courtesy of BMW OF NORTH AMERICA, INC.

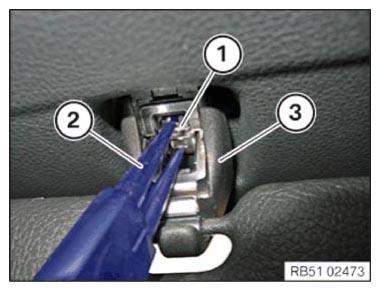

Unlock the clamp (1) with suitable long-nose pliers (2) and remove the counter support (3) by pulling it downward.

Fig 2: Removing Counter Support Clamp With Suitable Long-Nose Pliers

G10096981

Courtesy of BMW OF NORTH AMERICA, INC.

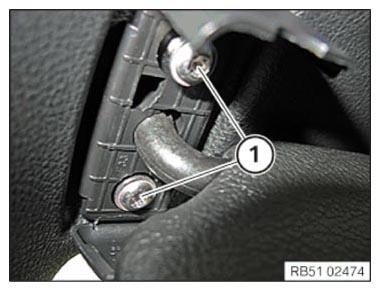

Release screws (1).

Fig 3: Screws

G10096982

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out the sun visor.

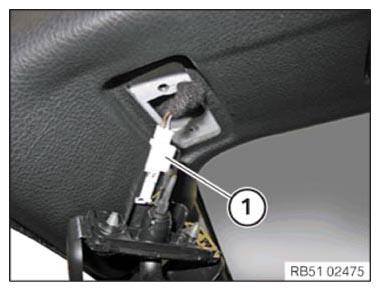

Disconnect plug connection (1).

Fig 4: Sun Visor Plug Connection

G10096983

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect plug connection (1).

Position the sun visor.

Fig 5: Sun Visor Plug Connection

G10096983

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) and close the covers.

Fig 6: Screws

G10096982

Courtesy of BMW OF NORTH AMERICA, INC.

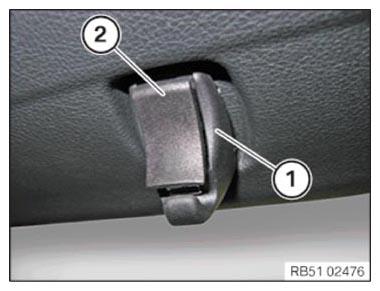

Engage the counter support (1) and clip the cover (2) into place.

Fig 7: Counter Support And Cover

G10096986

Courtesy of BMW OF NORTH AMERICA, INC.
