51 45 371 Replace the decorative strip on the dashboard, left
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary work:
- REMOVE decorative strip on dashboard on left

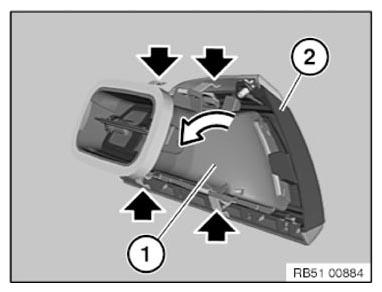

Unclip fresh air grille, left (1) from decorative trim, left (2) in direction of arrow.
Installation note:
Clamps labelled with arrows must not be bent or damaged, and must be renewed if they are.
