51 36 040 Removing and installing/replacing strip on side window at rear bottom left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged.

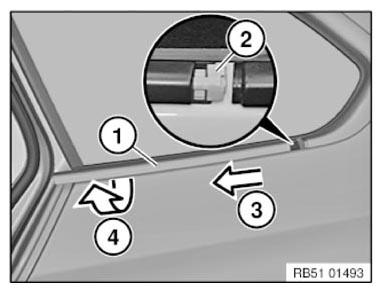

First push the strip (1) in direction of arrow (3) and then unclip it in direction of arrow (4).

IMPORTANT: Clip (2) may become detached from the strip (1).

Fig 1: Removing Side Window Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

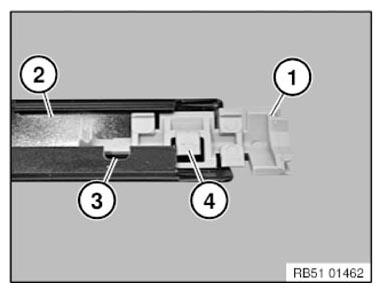

Push clip (1) into strip (2).

Make sure retaining lug (4) is locked in groove (3).

Fig 2: Side Window Retaining Lug, Clip And Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

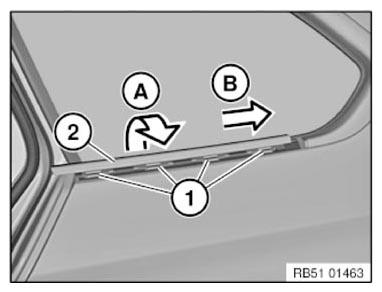

Guides (1) must not be damaged.

First position the strip (2) in direction of arrow (A) and then slide it in direction of arrow (B).

Fig 3: Positioning Side Window Guides

Courtesy of BMW OF NORTH AMERICA, INC.
