51 47 173 Removing and installing/replacing flap in luggage compartment trim on left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Pull release handle (1).

Open flap (2) and remove.

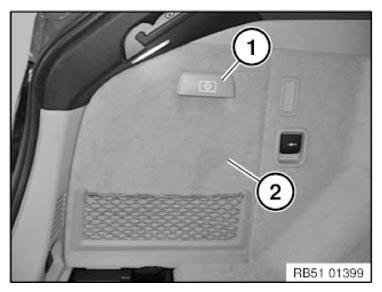

Fig 1: Luggage Compartment Trim Flap And Handle
G10153888Courtesy of BMW OF NORTH AMERICA, INC.
