11 53 082 Removing and installing cooling water feed line (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Remove EXHAUST TURBOCHARGER .

Release screw (1).

Tightening torque: 11 53 3AZ .

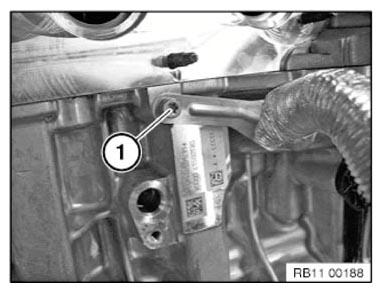

Fig 1: Cooling Water Feed Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the coolant line (1) in direction of arrow.

Installation note:

Replace O-ring.

Fig 2: Removing Vent Line And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
