11 25 671 Replacing piston rings on all pistons (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove all PISTONS .

Measuring side clearance of piston rings in piston ring groove.

TECHNICAL DATA .

NOTE: It is not possible to measure the axial clearance of the M-flex rings.

Fig 1: Measuring Piston Rings Side Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plain rectangular compression ring and stepped ring upwards with piston ring pliers.

The M-flex ring comprises two steel band rings and a bearing spring.

NOTE: The M-flex ring cannot be removed with piston ring pliers.

Put aside all piston rings in correct sequence and installation position.

It might not be possible to find the identification on used piston rings.

Installation note:

New pistons may only be installed together with new piston rings.

Fig 2: Removing Compression Ring And Stepped Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Insert removed piston ring into cylinder bore hole.

With aid of piston (piston crown), position piston ring in its measuring position.

Determine END CLEARANCE with a feeler gauge.

Fig 3: Measuring Piston Rings End Clearance With Feeler Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram of piston rings.

Fig 4: Piston Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Plain rectangular compression ring "top"
Piston ring "top"
Steel band with M-flex ring

Installation note:

Piston rings with "TOP" identification (1) must point to piston crown.

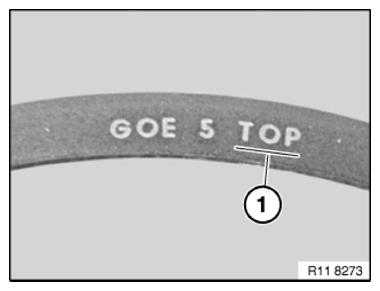

Fig 5: Piston Rings TOP Mark

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The M-flex ring comprises two steel band rings (1) and a bearing spring (2).

Installation note:

Insert bearing spring (2) into piston ring groove and then fit steel band rings (1) so that contact points are offset by approx. 120°.

Fig 6: Steel Band Ring And Support Spring

Courtesy of BMW OF NORTH AMERICA, INC.

The contact points (1) of the piston rings must be arranged offset by approx. 120°. However, the contact points (1) must not be arranged over the gudgeon pin boss.

NOTE: Graphic of N52.

Fig 7: Piston Rings Contact Points

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
