11 40 000 Checking the oil pressure (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove oil pressure switch . See 12 61 280 REMOVING AND INSTALLING/REPLACING OIL PRESSURE SWITCH (N47) or 12 61 280 REMOVING AND REFITTING/REPLACING OIL PRESSURE SWITCH (N47 WITH SCR) .

Install special tool 11 4 050 with sealing ring (1) in place of oil pressure switch.

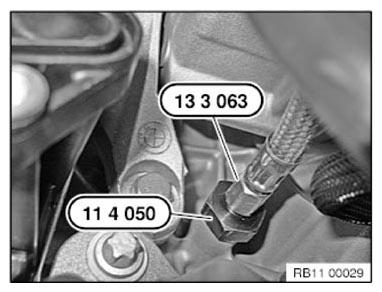

Fig 1: Installing Special Tool (11 4 050) With Sealing Ring

G09945072

Courtesy of BMW OF NORTH AMERICA, INC.

Check engine oil pressure with DIS Tester

Attach special tool 13 6 054 with sealing ring (1) and special tool 13 6 051 and connect to DIS Tester.

Check engine oil pressure with pressure gauge

Install special tool 13 3 063 and special tool 13 3 061 (pressure gauge).

Fig 2: Attaching Special Tool (13 6 054) With Sealing Ring

G04740315

Courtesy of BMW OF NORTH AMERICA, INC.

Fit pressure gauge 13 3 061 .

Check engine oil pressure.

Start engine and run at idle speed.

SETPOINT VALUE .

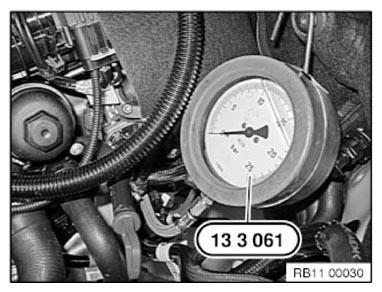

Fig 3: Fitting Pressure Gauge (13 3 061)

G09945074

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Reassemble vehicle and set in horizontal position.

Switch off engine, wait approx. 5 minutes and then check engine oil level.

Top up engine oil if necessary.
