11 13 000 Removing and installing, sealing or replacing oil sump (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Drain and add ENGINE OIL
Lower front axle . See 31 11 506 LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) .

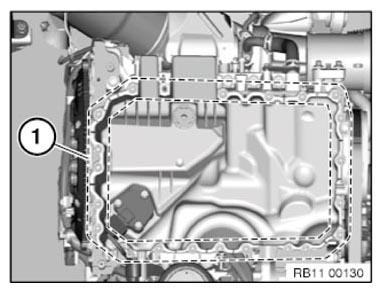

Fig 1: Oil Sump Bolts
Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection on oil level sensor.

Release bolts along line (1).

Tightening torque: 11 13 3AZ .

Tightening torque: 11 13 8AZ .

Remove synthetic oil pan in downwards direction.

Assemble engine.
