18 40 040 Removing and installing, sealing/replacing the exhaust manifold (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Necessary preliminary tasks:

Remove EXHAUST TURBOCHARGER .

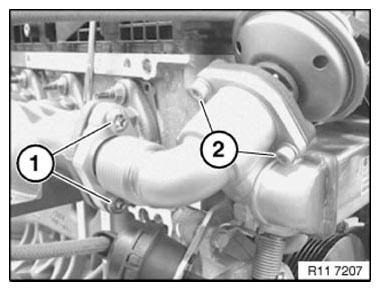

Release screws (1).

Tightening torque: 11 71 1AZ .

Do not release screws (2).

Fig 1: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

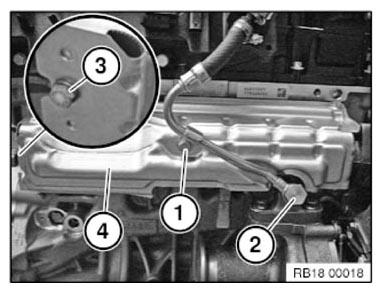

Slacken nut (1).

Tightening torque: 18 31 5AZ .

Unfasten banjo bolt (2).

Tightening torque: 13 62 7AZ .

Replace sealing rings.

IMPORTANT: To ensure operational reliability, use stainless steel sealing washers.

Fig 2: Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Set exhaust pressure pipe onto its side.

Release screw (3).

Tightening torque: 18 31 6AZ .

Remove heat shield (4).

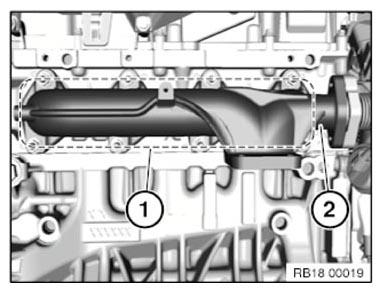

Release nuts along dashed line (1).

Tightening torque: 11 62 1AZ .

Remove exhaust manifold (2) from cylinder head.

Installation note:

Clean connection points.

Replace gaskets.

Fig 3: Exhaust Manifold And Nuts Line

Courtesy of BMW OF NORTH AMERICA, INC.

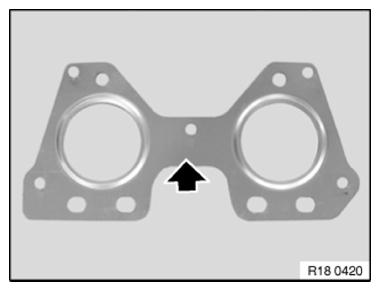

IMPORTANT: Manifold gaskets are graphite-coated on one side!

The graphite coating must be fitted on the manifold side.

Fig 4: Manifold Gaskets Graphite-Coated On Side

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DDE.
