11 12 070 Remove and install/replace acoustic cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Removing the acoustic cover

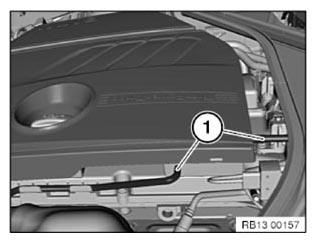

- Pull off vacuum line (1) from vacuum reservoir.

  Fig 1: Pulling Vacuum Line From Vacuum Reservoir
  Courtesy of BMW OF NORTH AMERICA, INC.

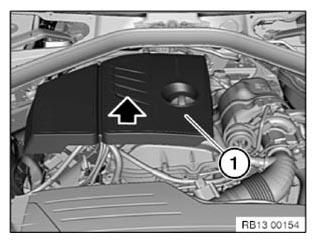

- Pull off acoustic cover (1) upward out of rubber mounts and remove.

  Fig 2: Acoustic Cover
  Courtesy of BMW OF NORTH AMERICA, INC.
Install acoustic cover

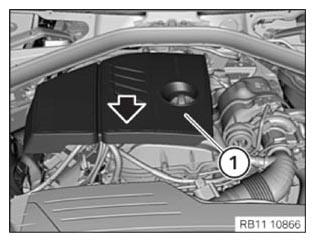

- Push in acoustic cover (1) down into the rubber mounts.

  Fig 3: Acoustic Cover
  Courtesy of BMW OF NORTH AMERICA, INC.
- Connect vacuum lines (1) to the vacuum reservoir.

  Fig 4: Connecting Vacuum Lines To Vacuum Reservoir
  Courtesy of BMW OF NORTH AMERICA, INC.
