11 15 001 Removing and installing/replacing the engine ventilation line with and without heating element (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INTAKE SILENCER HOUSING .

Release connector (1) and remove.

Unlock clamps. Detach engine tank ventilation line (2) from cylinder head cover and from clean air pipe.

Feed out and remove engine tank ventilation line.

Check gaskets; replace damaged gaskets.

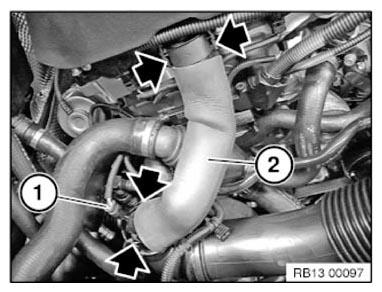

Fig 1: Engine Tank Ventilation Line And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
