11 31 028 Removing and installing/replacing exhaust camshaft (N20/N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 000
83 30 0494 362

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER .
Adjust valve timing . See 11 31 505 ADJUSTING TIMING OF CAMSHAFT(S) (N20, N26) .
Remove EXHAUST CAMSHAFT ADJUSTER

Release screws (1).

Tightening torque: 11 31 4AZ .

Fig 1: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

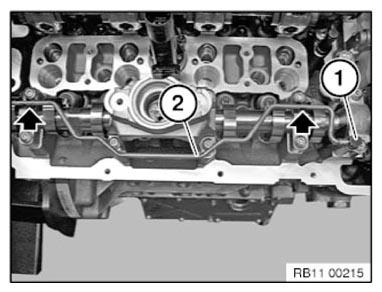

Release banjo bolt (1).

Tightening torque: 11 31 9AZ .

Installation note:

Replace sealing rings.

Unclip engine oil pipe (2) from the brackets (see arrows).

Fig 2: Removing Engine Oil Pipe From Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

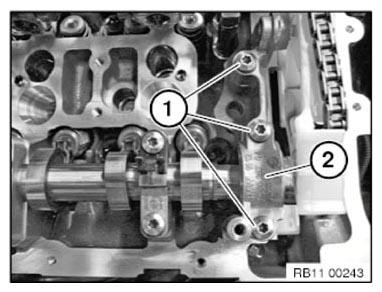

Release screws (1).

Tightening torque: 11 31 1AZ .

Remove bearing cap (2).

Fig 3: Bearing Cap And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

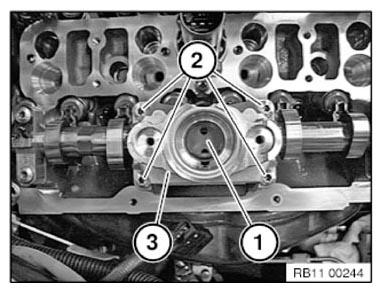

Remove roller tappet (1).

Unfasten screws (2).

Tightening torque: 11 31 1AZ .

Remove high-pressure pump bracket (3).

Fig 4: High-Pressure Pump Bracket, Roller Tappet And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

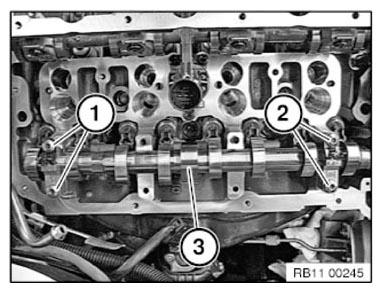

Release screws (1 and 2) by half a rotation.

Tightening torque: 11 31 1AZ .

Fig 5: Camshaft Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Marks of intake and exhaust camshafts are different.
Mixing up the intake and exhaust camshaft will result in engine damage .
A = Exhaust camshaft.
E = Intake camshaft

Fig 6: Intake And Exhaust Camshafts Marks

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Removal on engine:
Set engine to ignition TDC at cylinder No. 1.
Removed cylinder head:
When using special tool 11 9 000 , it will be necessary to remove the aluminum strip.
Order number: 83 30 0494 362

Installation note:

Prior to installation of exhaust camshaft, ensure proper installation position of rocker arm (1).

Fig 7: Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Insert exhaust camshaft so that the data code (1) on the mounting flats faces up.

NOTE: Graphic of intake camshaft N43

Fig 8: Intake And Exhaust Camshaft Data Code

Courtesy of BMW OF NORTH AMERICA, INC.

The cam (1) at cylinder 4 points downward at an angle.

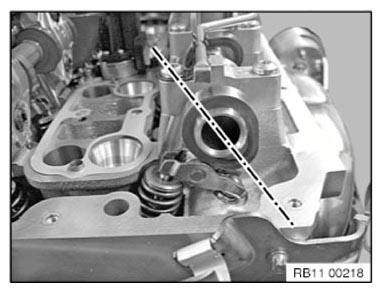

Fig 9: Cam Points

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
