11 31 025 Removing and installing/replacing intake camshaft (N20/N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 481

Necessary preliminary tasks:

NOTE: All bearing caps are identified with numbers from 1 to 4.

The front bearing cap is a thrust bearing and does not have an identification.

Release screws on all bearing caps (1 to 10).

Set down all bearing caps in a tidy and orderly fashion on special tool 11 4 481 .

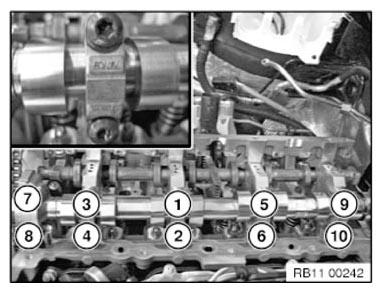

Fig 1: Intake Camshaft Bearing Caps Bolts Tightening/Loosening Sequence (N20)

G09923395

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 83 30 0 495 106

IMPORTANT: Marks of intake and exhaust camshafts are different.
Mixing up the intake and exhaust camshaft will result in engine damage .
A Exhaust camshaft.
E Intake camshaft

Fig 2: Intake And Exhaust Camshafts Marks

G09923368

Courtesy of BMW OF NORTH AMERICA, INC.

Insert intake camshaft so that data code (1) on mounting flats points upwards.

Fig 3: Intake And Exhaust Camshaft Data Code

G09845251

Courtesy of BMW OF NORTH AMERICA, INC.

Position intake camshaft so that cams point downward at an angle and to the left.

Fig 4: Intake Camshaft Cams Point

G09923398

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: All bearing caps are identified with numbers from 1 to 4.

The front bearing cap is a thrust bearing and does not have an identification.

Insert screws on all bearing caps from (10) to (1).

Tightening torque: 11 31 3AZ .

Fig 5: Intake Camshaft Bearing Caps Bolts Tightening/Loosening Sequence (N20)

G09923395

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
