41 31 000 Replace Roof Outer Skin

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Refer to repair instructions for ROOF OUTER SKIN WITH SLIDE/TILT SUNROOF  and carry over schematically to the vehicle.

STRIP DOWN VEHICLE

Installing roof outer skin

Apply sealant in areas (1) in the same way as in series standard.

Apply adhesive in area (2).

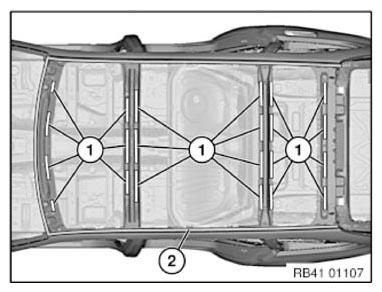

Fig 1: Identifying Sealant And Adhesive Application Areas
G10167018Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive in areas (1).

Fig 2: Identifying Adhesive Application Areas
G10167019Courtesy of BMW OF NORTH AMERICA, INC.
