13 90 500 Replacing tank vent valve (M54)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check stored fault messages
Switch off ignition
E83 only: Remove Intake Filter Housing .

Installation location:

Tank vent valve is fitted at front on intake air manifold.

Unlock and detach plug connection (1).

Unlock and detach vent hose (2).

Remove hose (3).

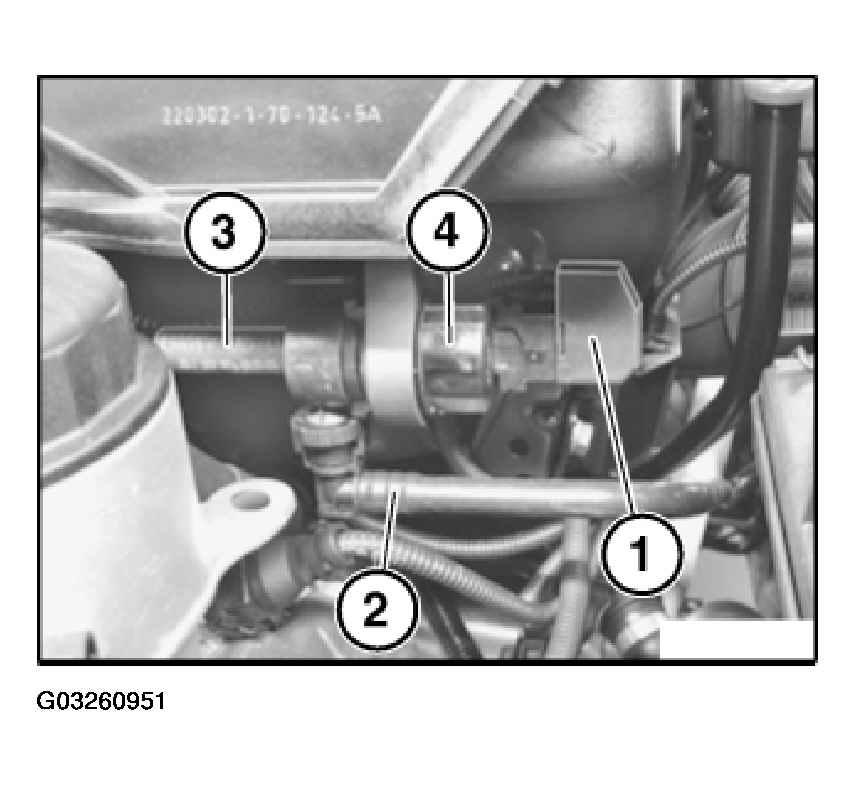

Fig 1: Detaching Vent Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out fault memory of DME control unit.

Rectify faults.

Now clear the fault memory.
