54 10 134 Replacing rear roof gasket
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Follow REPAIR INSTRUCTIONS for bonded seals on slide/tilt sunroof
- Open glass tilt sunroof lid
Begin dismantling on left or right:

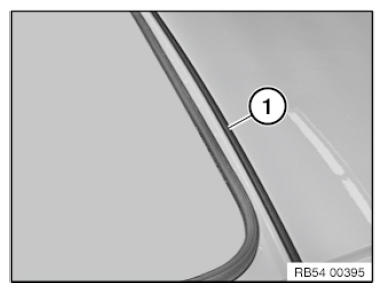

- Peel off rubber seal (1)
- Clean bonded area
Installation note:
During installation, also begin with the outer edge:
- Stick on rubber seal (1) in sections
- Press in rubber seal (1)
