25 11 111 Replacing gearshift rod joint

WARNING: This page is about a different car, the 2015 BMW M6, 2014 BMW M6, 2013 BMW M6, and 2012 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove PROPELLER SHAFT

Lift off retainer (1).

Detach gearshift rod (2).

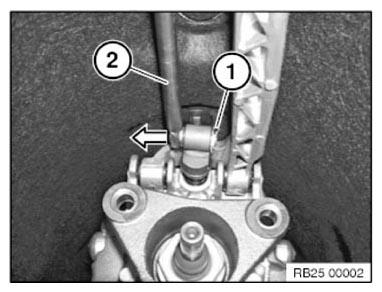

Fig 1: Detaching Gearshift Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Grease gearshift rod.

Grease, refer to GEAR SHIFT MECHANISM -- OPERATING FLUIDS .

IMPORTANT: Retaining clip must interlock captively with retaining web (1) behind shift rod pin.

Fig 2: Identifying Retaining Web

Courtesy of BMW OF NORTH AMERICA, INC.

Lever spring circlip (1) out of groove and push a little towards rear.

Press cylindrical pin (2) upwards/downwards out of gearshift rod joint and remove gearshift rod joint.

Installation note:

Grease ball of gearshift shaft.

Grease, refer to GEAR SHIFT MECHANISM -- OPERATING FLUIDS .

Replace spring circlip (1).

Fig 3: Removing Spring Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check rubber ring (1) in gearshift rod joint (2) and replace if necessary.

Fig 4: Identifying Rubber Ring And Gearshift Rod Joint

Courtesy of BMW OF NORTH AMERICA, INC.
