84 31 020 Removing and installing/replacing hands-free system speaker (emergency loudspeaker)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM PANEL FOR PEDAL MECHANISM .

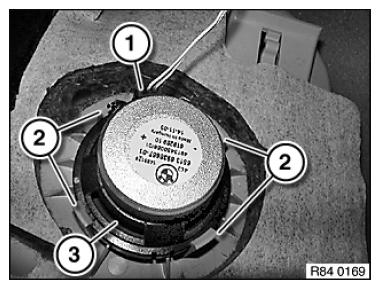

Disconnect connector (1).
If necessary, loosen cable straps from latch mechanisms (2).
Unlock latch mechanisms (2).
Remove speaker (3) from bracket.
Installation note:
Latch mechanisms (2) must not be damaged.
Guide lugs of the bracket must be positioned in the corresponding grooves of the speaker (3).
Speaker (3) must audibly engage in the bracket.
