11 23 010 Removing and installing or replacing vibration damper (M52TU / M54 / M56)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

IMPORTANT: Risk of damage.

Protect cooler against damage.

Version 1

Vibration damper and hub for vibration damper are two parts:

Unscrew vibration damper bolts and take off vibration damper.

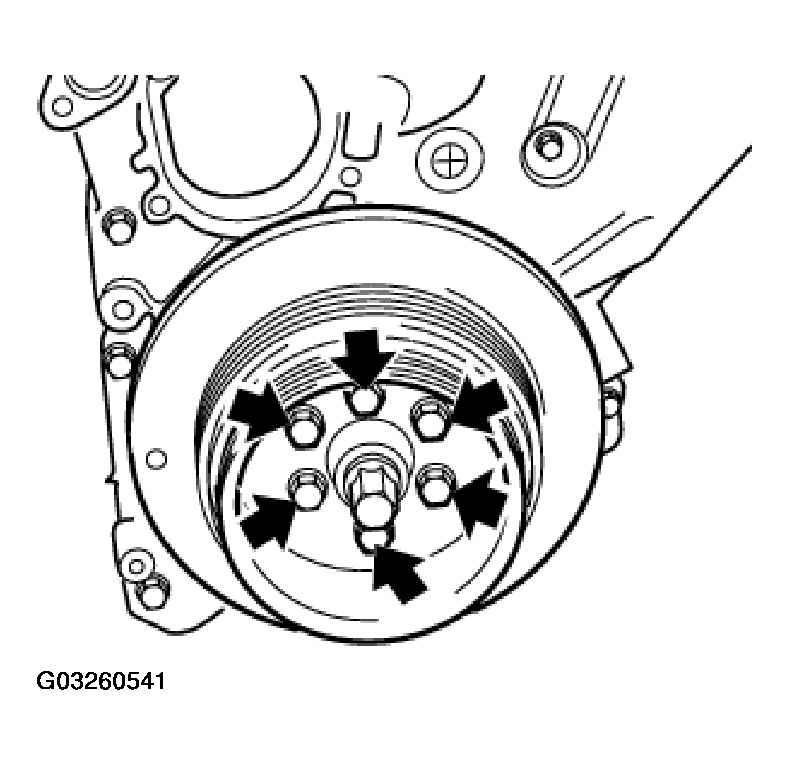

Fig 1: Unscrewing Vibration Damper Bolts
G03260541Courtesy of BMW OF NORTH AMERICA, INC.

Version 1

Vibration damper and hub for vibration damper are two parts:

Installation:

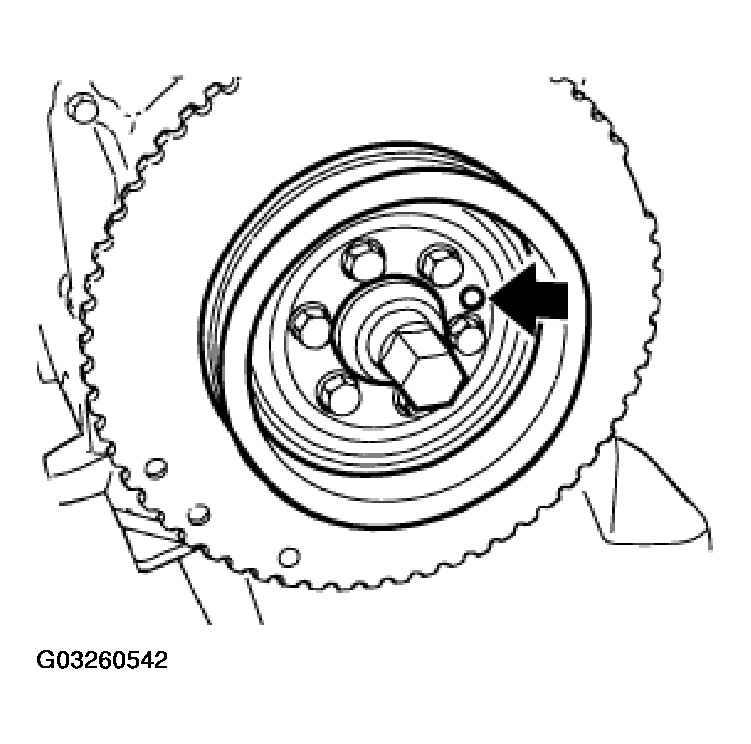

Align locating bore in vibration damper to dowel pin.

Install and tighten down screws.

Tightening torque, see 11 23 3AZ in ENGINE - TIGHTENING TORQUES .

Fig 2: Aligning Locating Bore In Vibration Damper To Dowel Pin
G03260542Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Vibration damper and hub for vibration damper are one part:

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 3: Identifying Special Tools
G03260543Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

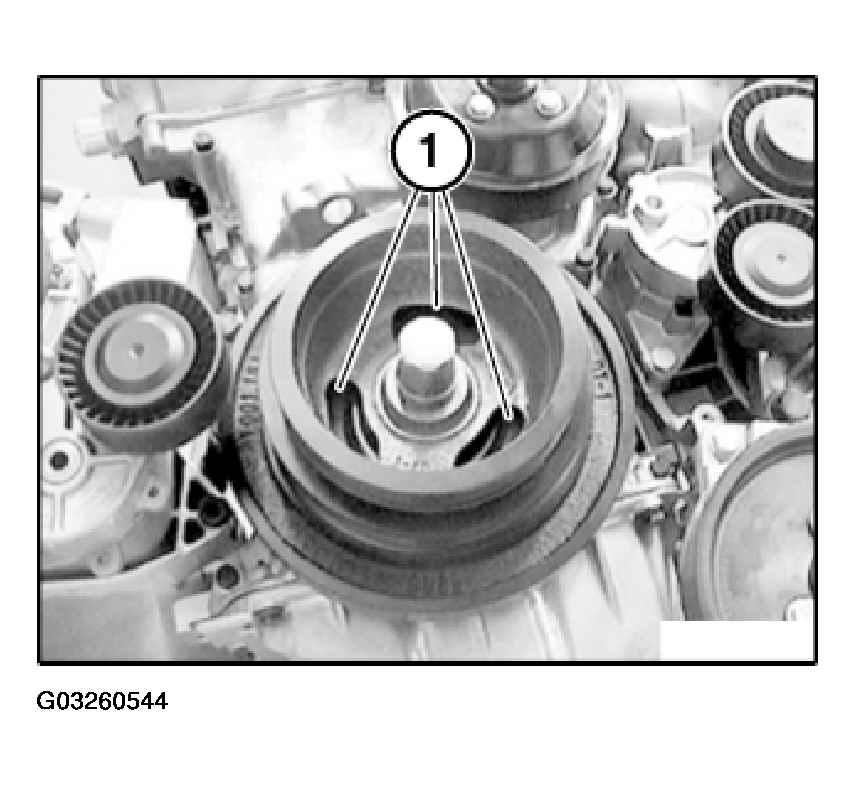

NOTE: Special tool 11 8 200 must snap into place in openings (1).
Fig 4: Installing Special Tool
G03260544Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

When releasing and tightening down central bolt, grip special tool 11 8 190 with assistance of a second person.

Version 2

Insert special tool 11 8 200 in openings on vibration damper and turn counterclockwise so that counter-supports snap into place on vibration damper.

Release central screw (1).

Fig 5: Releasing Central Screw
G03260545Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Feed out special tools 11 8 190 / 11 8 200.

Remove central screw and washer.

Carefully detach vibration damper (1) by hand.

Fig 6: Detaching Vibration Damper
G03260546Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

NOTE: If vibration damper cannot be detached by hand:

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

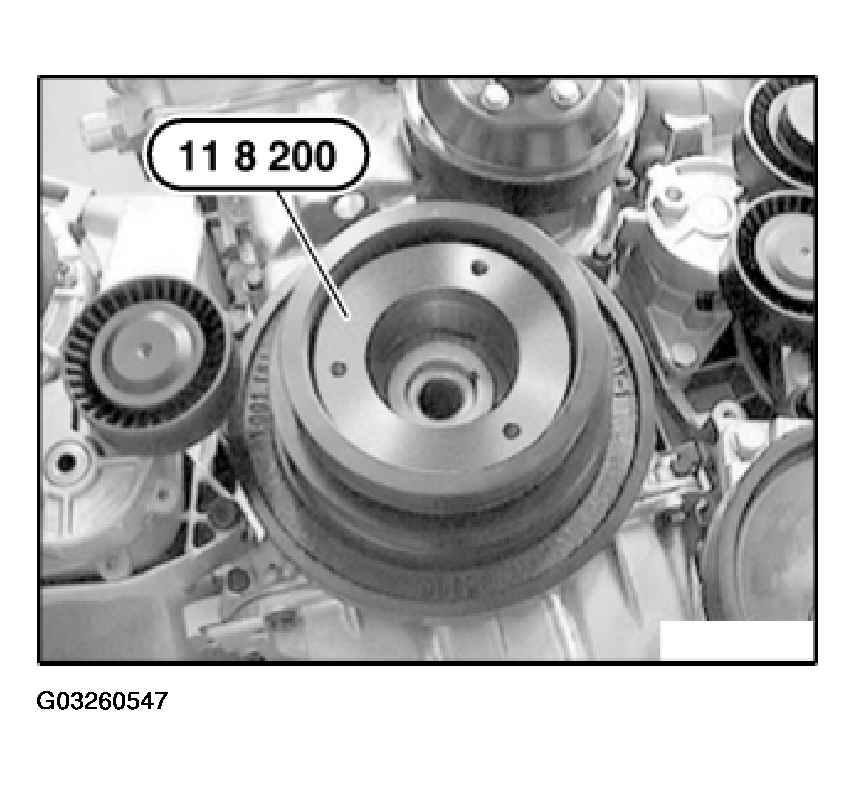

Fig 7: Inserting Special Tool In Openings On Vibration Damper
G03260547Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Screw out spindle (1) on special tool 11 8 210 as far as possible.

Z3 only:

Screw in spindle (1) on special tool 11 8 210 approx. 15 mm and screw out again only after installation between special tool 11 8 200 and cooler.

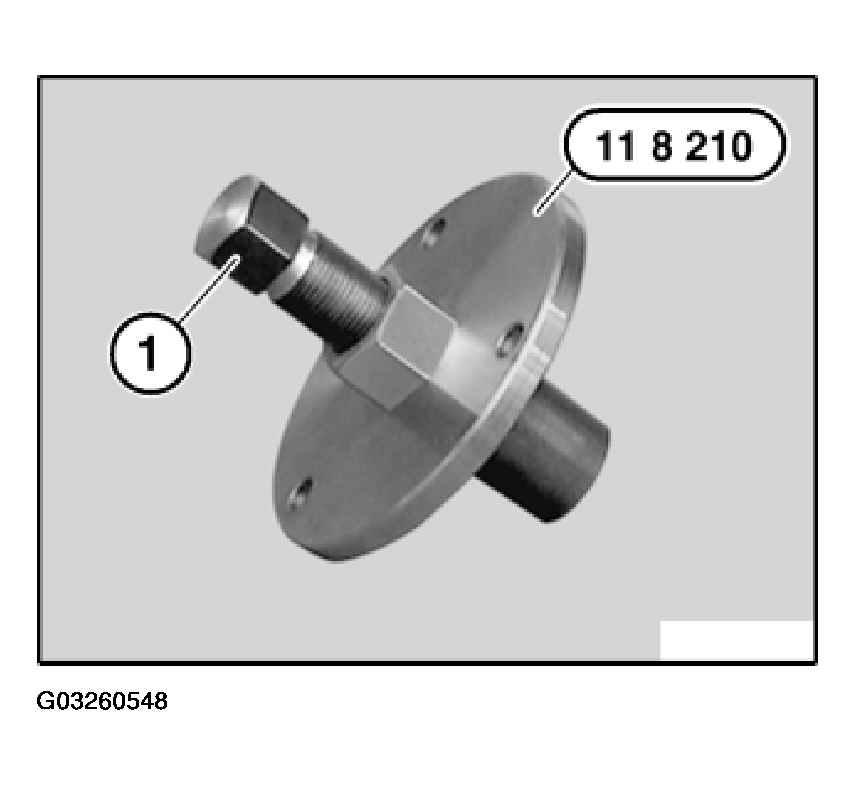

Fig 8: Identifying Special Tool
G03260548Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

IMPORTANT: Risk of damage.

Protect cooler against damage.

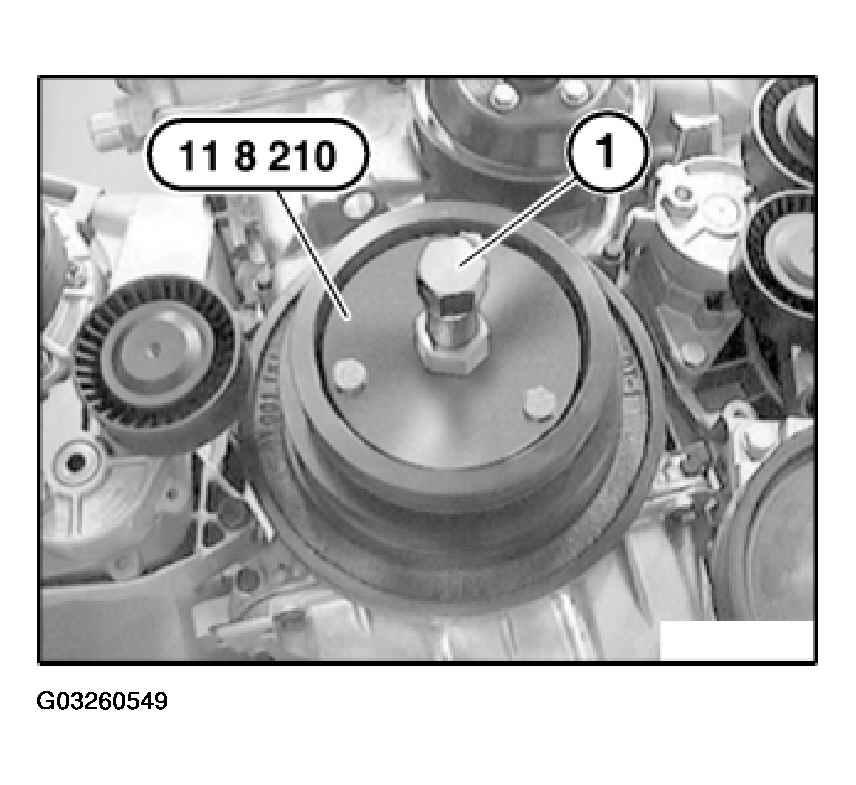

Carefully install special tool 11 8 210.

Screw special tool 11 8 210 to special tool 11 8 200.

Detach vibration damper by turning spindle (1) on special tool 11 8 210.

Fig 9: Detaching Vibration Damper By Turning Spindle On Special Tool
G03260549Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

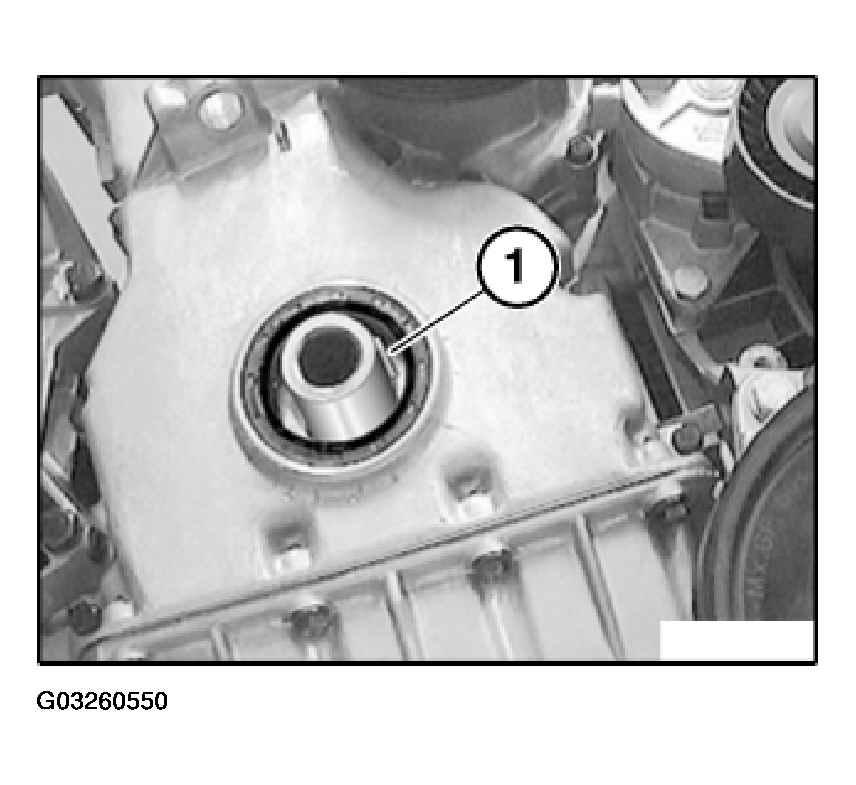

Check featherkey (1) for damage and correct installation position.

Replace radial seal in lower timing case cover.

Fig 10: Checking Featherkey For Damage
G03260550Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

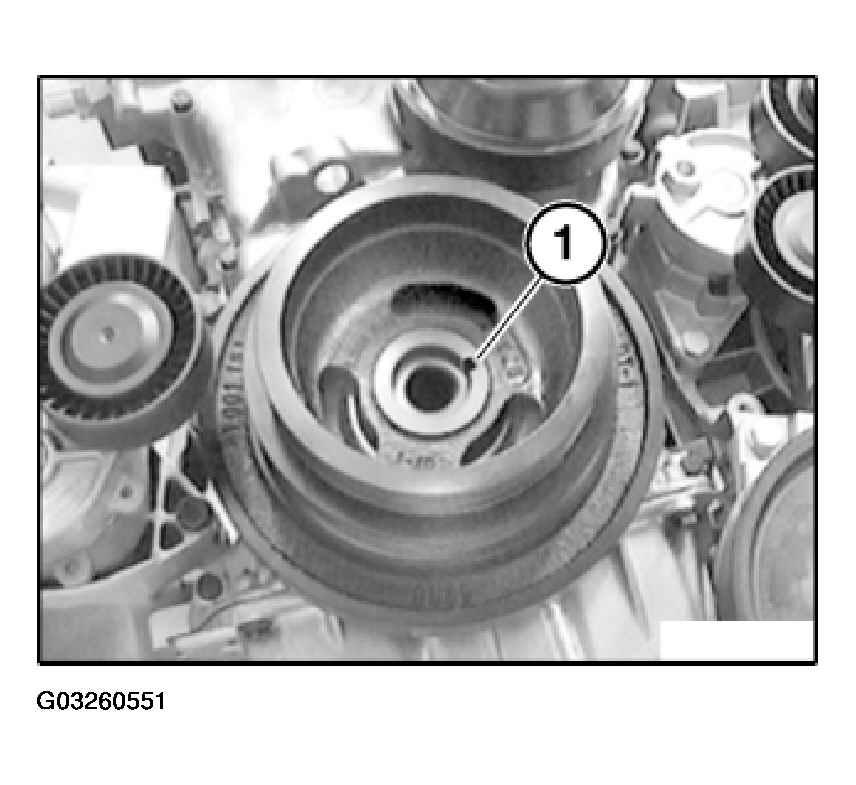

Align groove (1) in vibration damper to featherkey.

Fit vibration damper.

Fig 11: Aligning Groove In Vibration Damper To Featherkey
G03260551Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

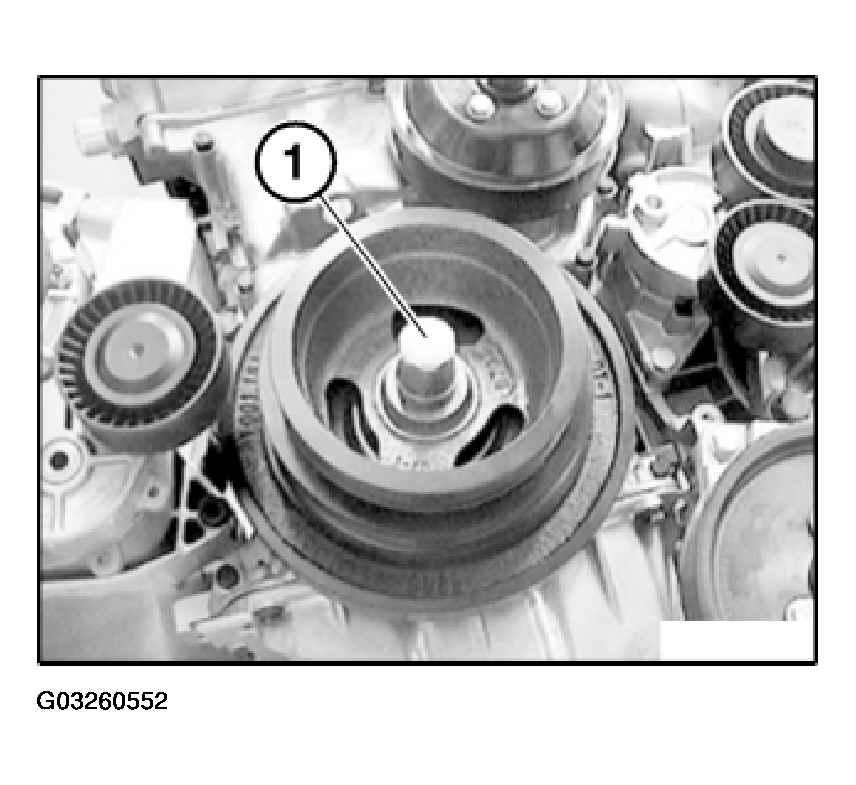

Replace central screw (1).

Install central screw and washer.

Fig 12: Replacing Central Screw
G03260552Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

Installation:

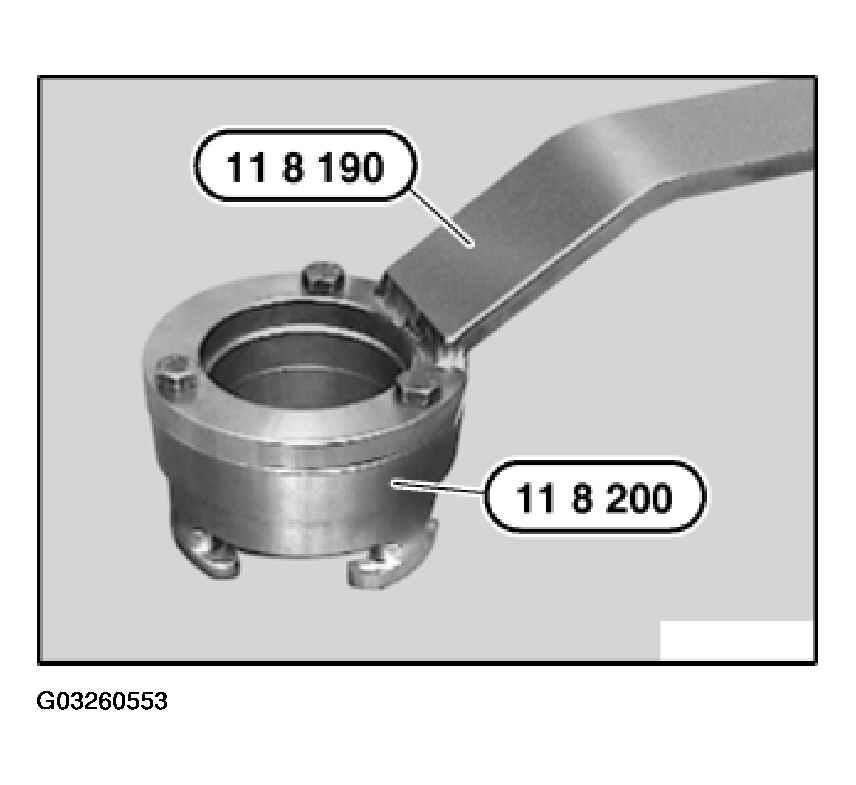

Screw special tool 11 8 190 to special tool 11 8 200.

Fig 13: Identifying Special Tools
G03260553Courtesy of BMW OF NORTH AMERICA, INC.

Version 2

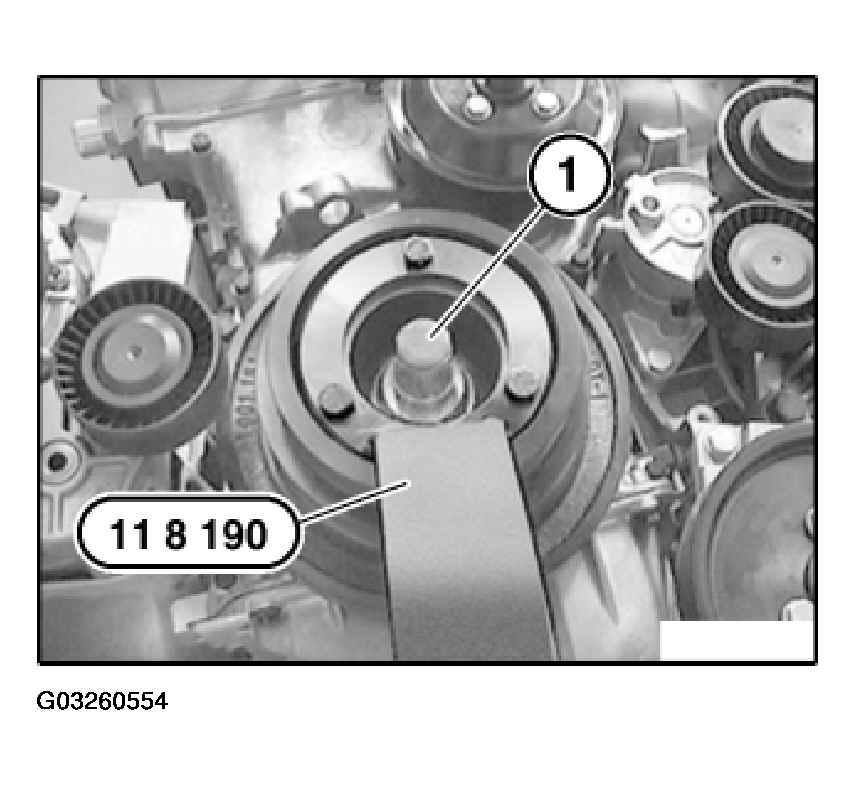

Insert special tool 11 8 200 in openings on vibration damper and turn clockwise so that counter-supports snap into place on vibration damper.

Tighten down central screw (1).

Tightening torque, see 11 23 2AZ in ENGINE - TIGHTENING TORQUES .

Fig 14: Inserting Special Tool In Openings On Vibration Damper
G03260554Courtesy of BMW OF NORTH AMERICA, INC.
