11 72 000 Removing and installing or replacing air pump

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right wheel arch cover

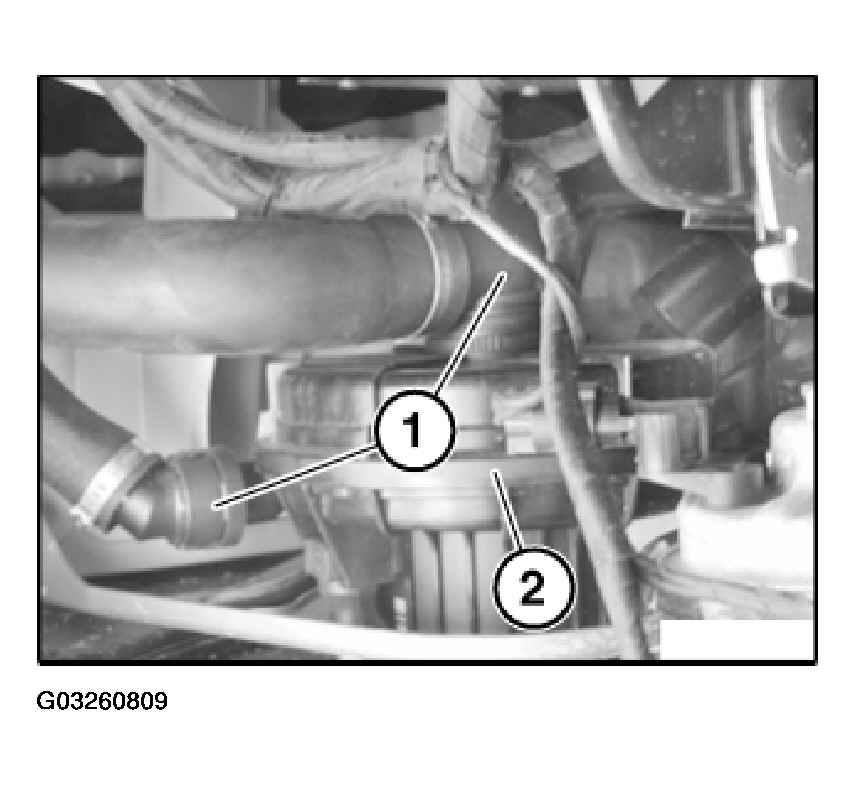

Unlock pressure and suction lines (1) on air pump (2) and disconnect.

Fig 1: Disconnecting Pressure And Suction Lines

Courtesy of BMW OF NORTH AMERICA, INC.

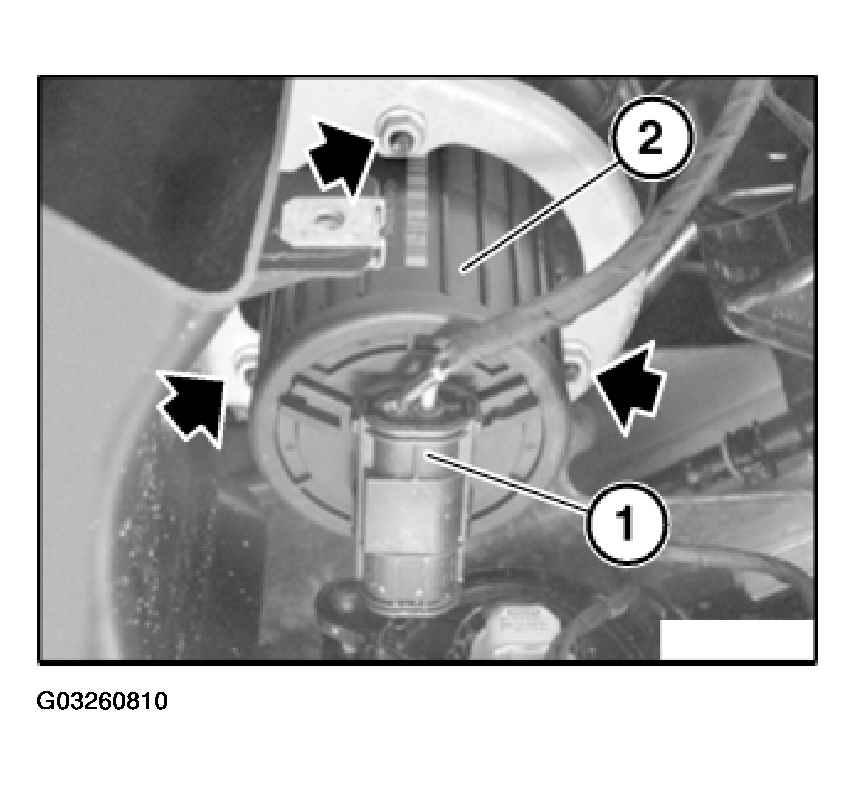

Unlock plug (1) and remove.

Unscrew nuts.

Remove air pump (2).

Fig 2: Removing Air Pump

Courtesy of BMW OF NORTH AMERICA, INC.

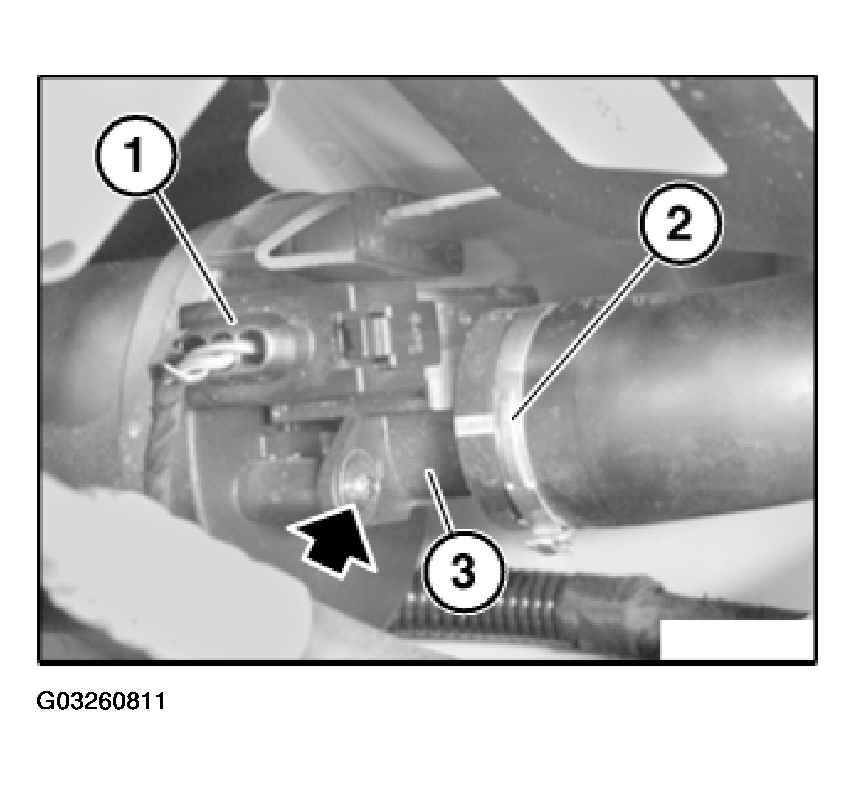

Version with secondary air mass sensor Removing secondary air mass sensor:

Unlock plug (1) and remove.

Release clamp (2) and detach hose.

Release screw and secondary air mass sensor (3).

Fig 3: Releasing Screw And Secondary Air Mass Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
