63 13 205 Removing and installing/replacing front left or right side repeaters (M6)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

Disengage side repeater (1) at marked positions using special tool 00 9 327 .

Feed out side repeater (1) in direction of arrow.

Unlock associated plug connection and disconnect.

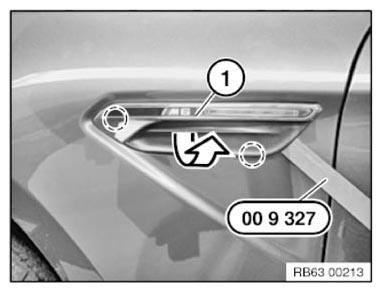

Fig 1: Removing Side Repeater Using Special Tool 00 9 327

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lug (1) and clamp (3) on side repeater (2) must not be damaged or missing.

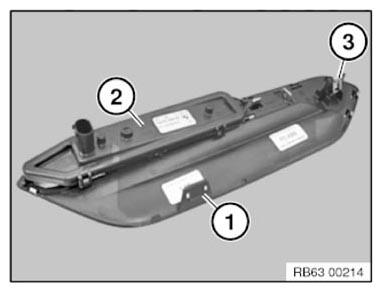

Fig 2: Identifying Retaining Lug And Clamp On Side Repeater

Courtesy of BMW OF NORTH AMERICA, INC.
