63 21 183 Removing and installing/replacing left or right rear light (on tailgate)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Release expanding rivets (1) and fold down tailgate trim panel (2) slightly.

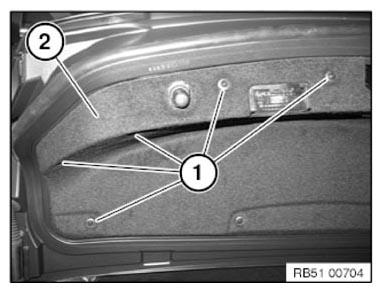

Fig 1: Identifying Tailgate Trim Panel And Expanding Rivets
G10064497Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace expanding rivets.

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque 61 21 2AZ .

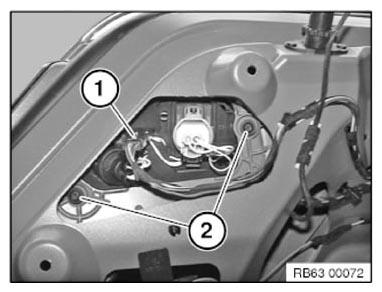

Fig 2: Identifying Plug Connection And Screws
G10064498Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear light (1) in direction of arrow.

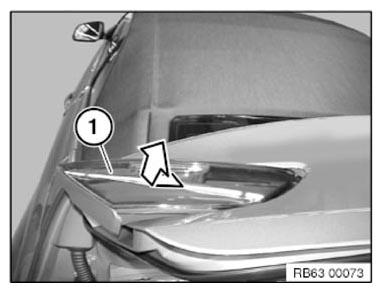

Fig 3: Removing Rear Light
G10064499Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The seal (1) must not be damaged or missing.

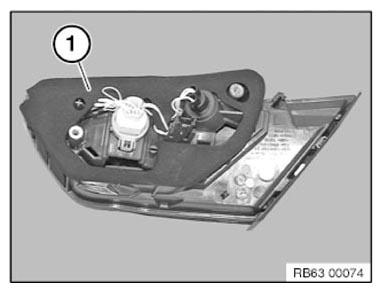

Fig 4: Identifying Sealing Frame
G10064500Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
