63 21 057 Replacing a socket housing for left or right rear light (rear lid)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Release expanding rivets (1) and fold down tailgate trim panel (2) slightly.

Installation note:

Replace expanding rivets (1).

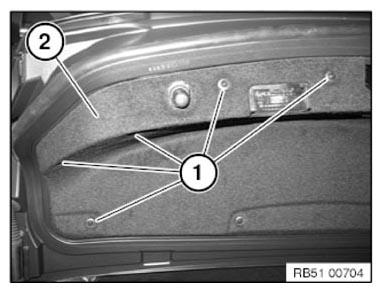

Fig 1: Identifying Tailgate Trim Panel And Expanding Rivets
Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Feed cable (2) out of rear light (3).

Unlock associated plug connection to LED and disconnect.

Installation note:

Make sure plug connections and cables in rear light (3) are correctly seated.

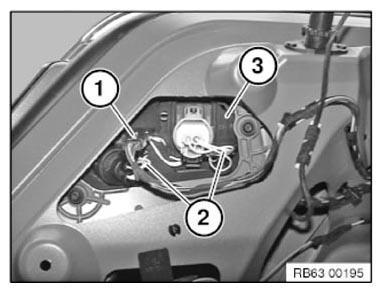

Fig 2: Identifying Rear Light, Cable, And Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Turn socket housing (1) in direction of arrow and remove from rear light (3).

Unlock socket housing (2) and remove from rear light (3).

Installation note:

Make sure socket housing (1; 2) is correctly seated in rear light (3).

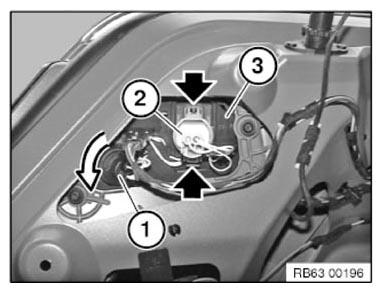

Fig 3: Removing Socket Housing
Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb of reversing light (1) in direction of arrow and remove from socket housing (2).

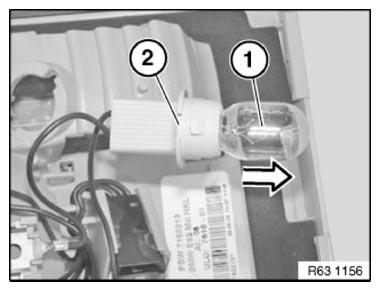

Fig 4: Removing Reversing Light Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Replace bulb of rear fog light (1) along with socket housing.

Installation note:

Note BULB TYPE .

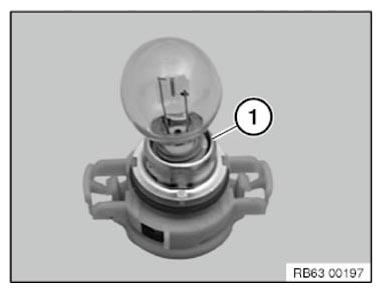

Fig 5: Identifying Rear Fog Light Bulb
