63 99 431 Replacing bulb for front interior roof light
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
WARNING:
Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Carefully unclip cover (1) with special tool 00 9 323 and remove.
Installation note:
Ensure cover (1) is correctly seated.
Unlock retaining lugs (1) with suitable tool while carefully lifting out with special tool 00 9 325 .
Remove roof switch cluster (2) in direction of arrow.
Do not disconnect plug connections underneath (fault code entries possible).
Installation note:
Retaining lugs (1) must not be damaged.
Make sure roof switch cluster (2) is correctly fitted.

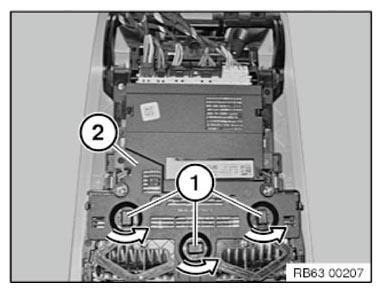

Turn bulbs in direction of arrow and remove.
Installation note:
Note BULB TYPE .
