63 99 289 Replacing both bulbs for turn indicators at front left

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT HEADLIGHT .

Release screws (1).

Remove protective cap with socket.

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb with socket (1) in direction of arrow and remove from bulb holder (2) toward the top.

Installation note:

Check that bulb with socket (1) and sealing ring (3) on bulb holder (2) are correctly seated.

Note BULB TYPE .

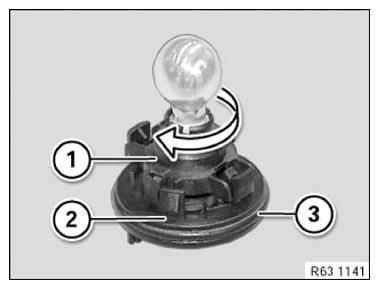

Fig 2: Removing Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
