63 99 160 Replacing bulb for front left turning lights

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Turn protective cap (1) on headlight in direction of arrow and remove.

Installation note:

Protective cap (1) must be correctly engaged.

Check gasket, replace protective cap (1) if necessary.

Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unlock clamps (2) in direction of arrow.

Remove bulb (3) from socket housing.

Installation note:

Make sure bulb (3) is correctly seated in socket housing.

Replacement:

Note BULB TYPE .

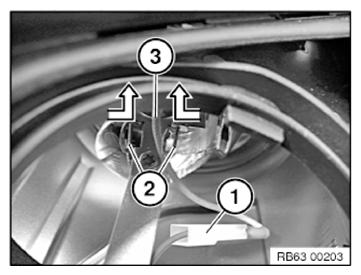

Fig 2: Removing Bulb From Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.
