63 31 020 Removing and installing/renewing footwell light

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

Footwell, left/right:

Lever footwell light (1) in direction of arrow out of trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Fig 1: Removing Left/Right Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.

Door, left/right:

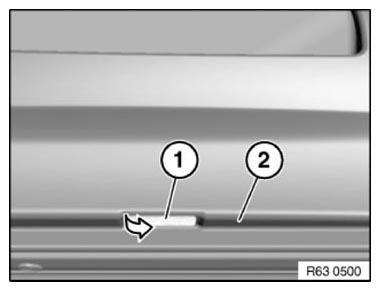

Lever footwell light (1) in direction of arrow out of door trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Replacement:

If necessary, remove bulb, note BULB TYPE .
The footwell light in LED technology must be completely replaced.

Fig 2: Removing Left/Right Door Footwell Light
Courtesy of BMW OF NORTH AMERICA, INC.

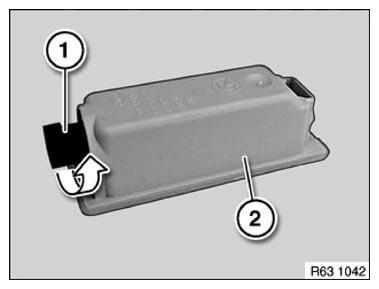

Turn bulb holder (1) in direction of arrow and pull out of footwell light (2).

Installation note:

Make sure bulb holder (1) is correctly seated and latched on footwell light (2).

Fig 3: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

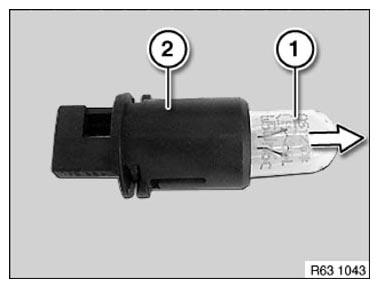

Pull bulb (1) in direction of arrow out of bulb holder (2).

Fig 4: Pulling Bulb Out Of Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
