63 12 870 Replacing ignition unit for left xenon headlight
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights: Danger to life due to high voltage. Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

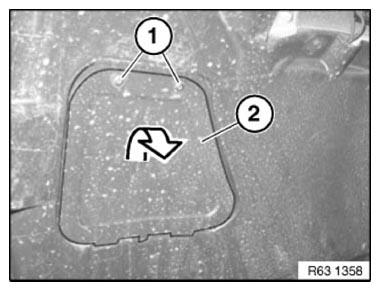

Release screws (1).
Remove lid (2) in direction of arrow.
Turn protective cap (1) counterclockwise and remove.
IMPORTANT:
Risk of damage due to moisture penetration.
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Protective cap (1) must lock correctly.

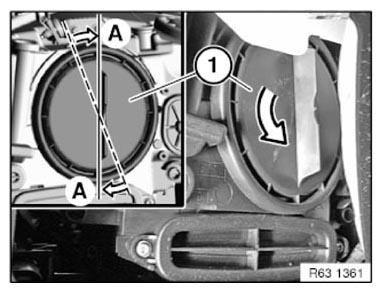

Turn the protective cap (1) clockwise to end stop (A).

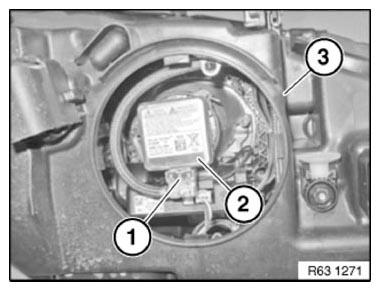

Disconnect plug connection (1).
Turn ignition unit for xenon headlight (2) approx. 30° counterclockwise and detach from headlight (3).
Installation note:
Make sure inner ring is correctly positioned in ignition unit for xenon headlight (2).
Recommendation:
Check HEADLIGHT ADJUSTMENT , correct if necessary.
