63 12 860 Replacing control unit for left xenon headlight

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon lighting system: Danger to life due to high voltage. Disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Comply with notes and notes on handling EXTERIOR LIGHTS .

IMPORTANT: Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE .

Necessary preliminary tasks:

REMOVE HEADLIGHT

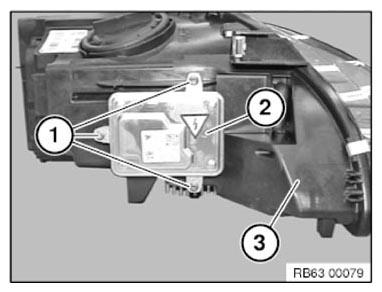

Release screws (1).

Tightening torque 33 12 5AZ .

Remove control unit for xenon headlight (2) from headlight (3).

Fig 1: Identifying Xenon Headlight Control Unit And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

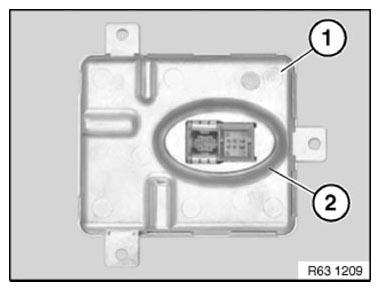

When installing control unit for xenon headlight (1), make sure sealing cup (2) is correctly seated.
