63 11 848 Replace both the left LED fans

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove WHEEL ARCH COVER (front section)
Remove SEAL MOUNTING FOR ENGINE COMPARTMENT LID

Release screws (1).

Tightening torque 63 11 6AZ .

Remove protective cap (2).

Installation note:

Check protective cap (2) for correct fit.

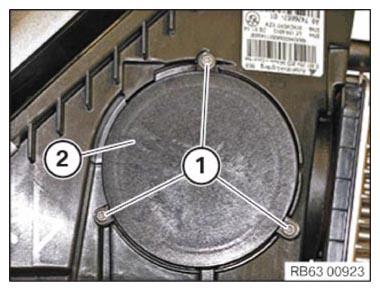

Fig 1: Identifying Protective Cap Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage due to moisture penetration.

Installation note:

Screw traps should not be damaged or missing.

The seal (1) must not be damaged or missing.

Replace protective cap (2) if necessary.

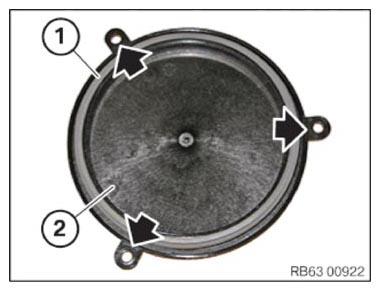

Fig 2: Identifying Protective Cap Seal And Bolt Shackles

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 63 11 5AZ .

Pull out the LED-fan (2).

Unlock and disconnect connector (3).

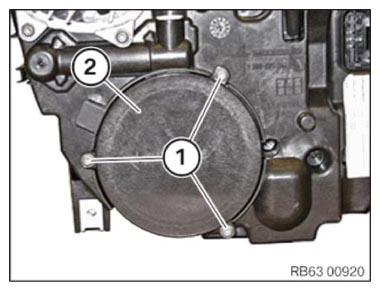

Fig 3: Identifying LED-Fan, Connector, Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 63 11 6AZ .

Remove cover (2).

Installation note:

Check protective cap (2) for correct fit.

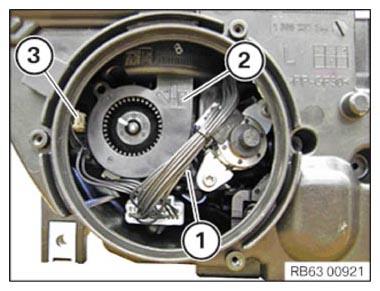

Fig 4: Identifying Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage due to moisture penetration.

Installation note:

Screw traps should not be damaged or missing.

The seal (1) must not be damaged or missing.

Replace protective cap (2) if necessary.

Fig 5: Identifying Protective Cap Seal And Bolt Shackles

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Unfasten screws (2).

Tightening torque 63 11 4AZ .

Remove LED module (3).

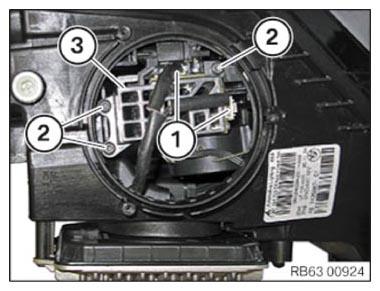

Fig 6: Identifying LED Module, Connector, And Screws
