63 11 840 Replacing left LED fan left (outer)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove WHEEL ARCH COVER

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration.

Installation note:

Check seal. Replace protective cap (1) if necessary.

Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

Protective cap (1) must lock correctly.

Turn the protective cap (1) clockwise to end stop (A).

Fig 1: Turning Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque 63 11 5AZ .

Remove LED fan (3).

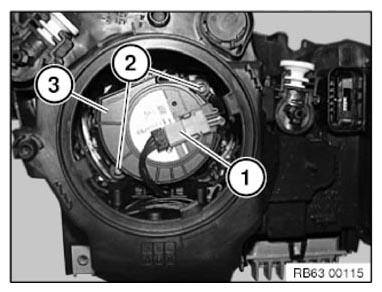

Fig 2: Identifying LED Fan Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
