63 11 731 Replace LED module for left daytime driving lights

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SEAL MOUNTING FOR ENGINE COMPARTMENT LID

Release screws (1).

Tightening torque 63 11 6AZ .

Remove cover (2).

Installation note:

Check protective cap (2) is correctly seated.

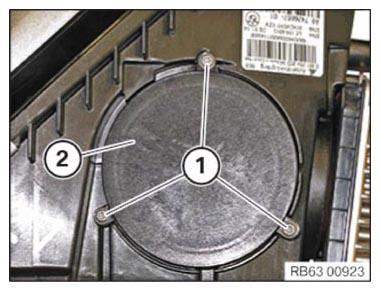

Fig 1: Identifying Cover And Screws

G10064396

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage due to moisture penetration.

Installation note:

Bolt shackles must not be damaged or missing.

The seal (1) must not be damaged or missing.

Replace protective cap (2) if necessary.

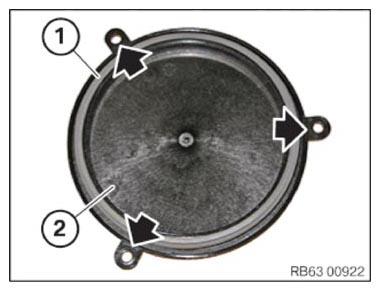

Fig 2: Identifying Protective Cap Seal And Bolt Shackles

G10064397

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

Unfasten screws (2).

Tightening torque 63 11 4AZ .

Feed out LED module (3).

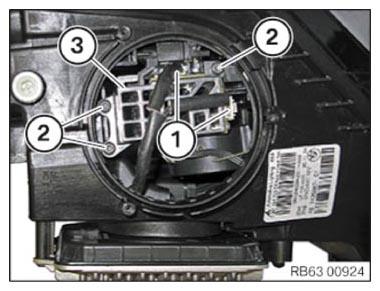

Fig 3: Identifying LED Module, Connector, And Screws

G10064398

Courtesy of BMW OF NORTH AMERICA, INC.
