63 11 560 Removing and installing/replacing the left headlight driver module

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon lighting system: Danger to life due to high voltage. Disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and xenon bulb) may only be carried out by qualified personnel.

IMPORTANT: Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE .

Necessary preliminary tasks:

REMOVE HEADLIGHT

Release screws (1).

Pull headlight driver module (2) out of the headlight.

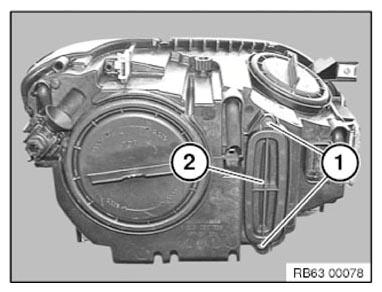

Fig 1: Identifying Headlight Driver Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

During installation, make sure gasket (1) is correctly positioned.

Gasket (1) must not be damaged and must be installed free from grease.

Guides must not be missing or damaged.

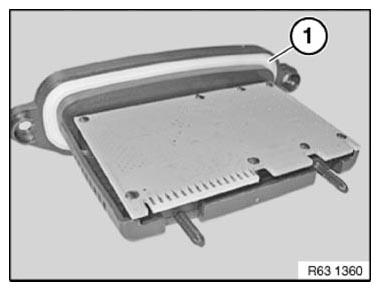

Fig 2: Identifying Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in headlight driver module (1) via vehicle diagnosis.

Service functions
Body
Lights
Initialize the headlight driver module and teach in LEDs in headlight
Carry out encoding, if applicable
