41 14 504 Replacing Rear Right Outer Wheel Arch Section (Rear Side Panel Removed)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Observe procedure for REPAIR STAGE 2 .

The following new body parts are required:

(1) Outer wheel arch section, rear

Following CONSUMABLES are required:

Material	Quantity
Adhesive K5a	1
Blind rivets N3	12
Cleaning agent R1	1
Cavity sealing wax remover	1
Sealant D1

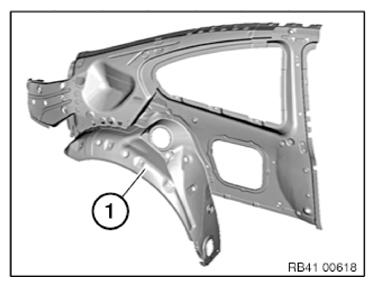

Fig 1: Identifying Rear Outer Wheel Arch Section

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of outer wheel arch section

Mark severance cut (1) approx. 20 mm next to component edge of C-pillar reinforcement (2) and cut.

IMPORTANT: Severance cut in area (3) not permitted.

Open welded connections in area (4).

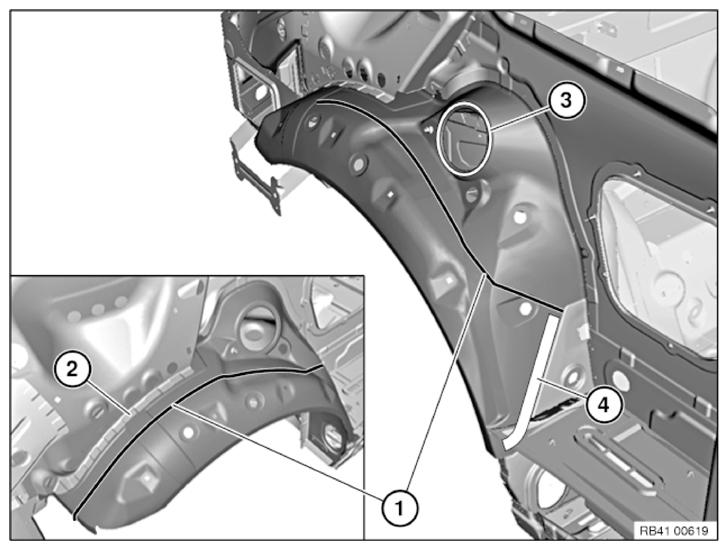

Fig 2: Identifying Welded Connections And Severance Cut Line

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cut on vehicle + 20 mm extra material and cut.

Adjust new parts in combination with side wall to fit and secure.

In area of bonding surface (1), drill twelve 4.2 mm dia. holes for blind rivets N3.

Remove new part and deburr holes.

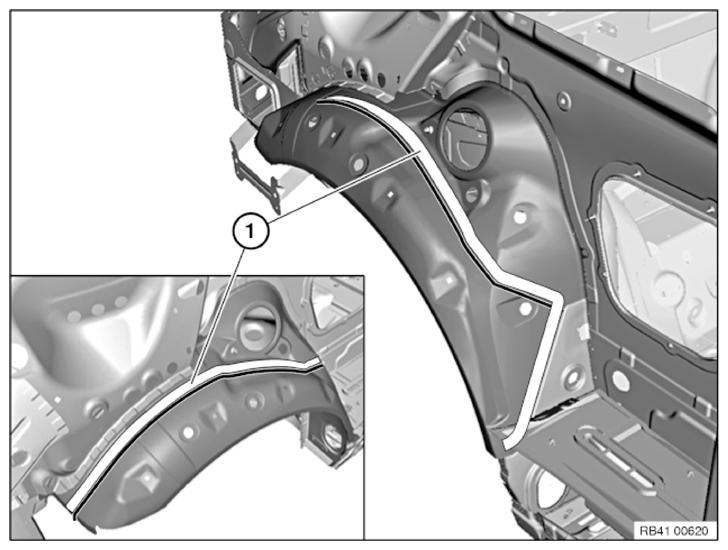

Fig 3: Identifying Bonding Surface Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of outer wheel arch section

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Apply sealant to CAVITY SEALING .

Install and rivet wheel arch outer part in connection with side panel.
