41 11 311 Replace Entrance For Front Left Door

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

The following new body parts are required:

(1) Side frame, outer
(2) Reinforcement plate, sill

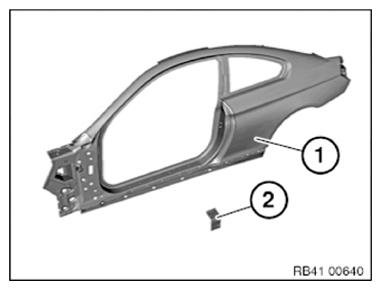

Fig 1: Identifying Outer Side Frame And Sill Reinforcement Plate
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts (1) and (2) and cut.

IMPORTANT: Cut outer panel only for following severance cuts.
Severance cut (1) through 25 mm dia. hole.
Severance cut (2): Dimension "a" = approx.55 mm in front of 15 mm dia. hole.
Open welded connections in areas (3) and (4).

Installation note:

Mark severance cuts on new part in accordance with severance cuts on vehicle and cut.

Weld in REINFORCEMENT PLATES at severance cuts.

In area (3) the inner and outer side members are joined by spot-welding bonding technology.

Apply repair welding spots in area (3) to existing welding spots on vehicle.

This is necessary because the adhesive between the spot flanges acts as an insulator.

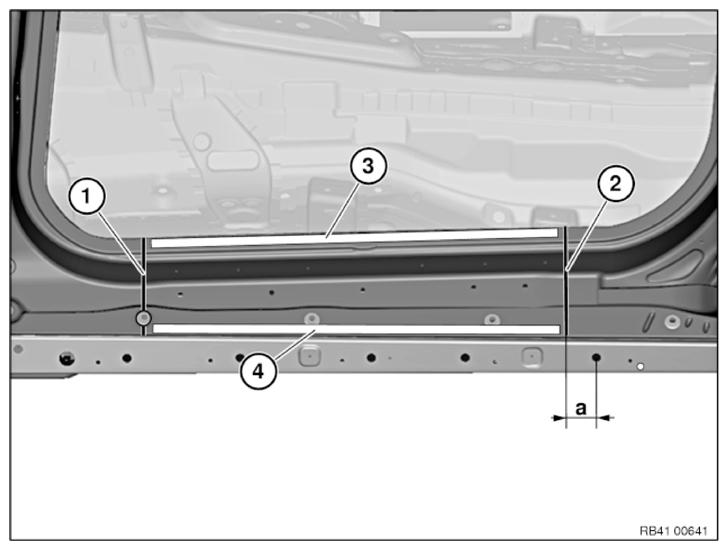

Fig 2: Locating Severance Cuts And Weld Areas

Courtesy of BMW OF NORTH AMERICA, INC.
