41 11 095 Replacing Left Engine Support In Front Of Wheel Arch

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Follow procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Use only APPROVED SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Necessary preliminary work:

REMOVE CARRIER SUPPORT

The following new body parts are required:

(1) Engine support, front

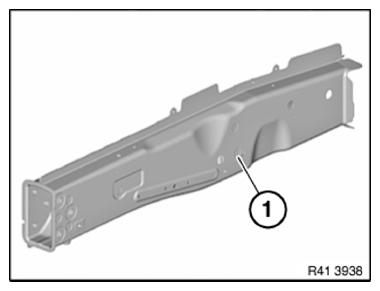

Fig 1: Identifying Front Engine Support
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with Dimension "a" and cut.

Dimension "a"=40 mm before wheel arch edge.

Remove section of engine support.

Installation note:

Mark severance cut on new part in accordance with vehicle and cut.

Adjust new part to fit with alignment bracket or universal mount.

Weld in REINFORCEMENT PLATE at severance cut.

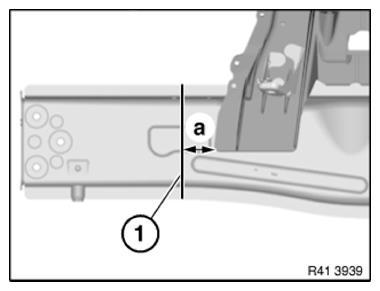

Fig 2: Identifying Severance Cut Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
