41 11 091 Replacing Left Engine Support In Front Of Bulkhead

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure of REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Steel-aluminium composite construction is used on the vehicle.

Observe specific procedure for repairs. See BONDING ALUMINIUM ON STEEL and OPENING RIVETED CONNECTIONS .

Use only approved SPOT-WELDING APPARATUS .

Place vehicle on straightening bench.

The following new body parts are required:

(1) Engine support
(2) Engine support, rear

Following CONSUMABLES are required:

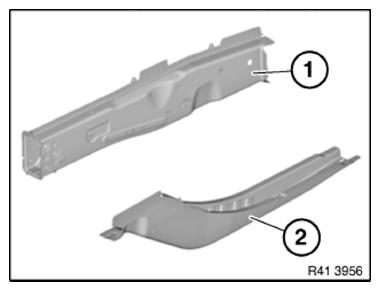

Fig 1: Identifying Engine Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K1	1
Blind rivet N2	19
Cleaning agent R1	1
Cavity sealing wax remover	1
Sealant D1

Removal of engine support

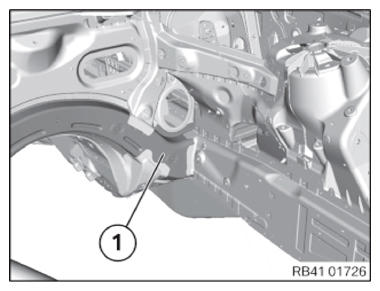

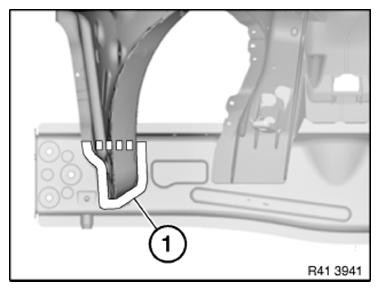

Open welded connections in area (1).

Fig 2: Identifying Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

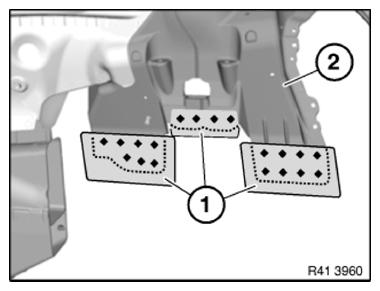

Drill out rivet connections in areas (1) and (2).

IMPORTANT: Do not damage aluminium spring strut dome.
Drill diameter maximum 6.8 mm.

Fig 3: Identifying Rivet Connections

Courtesy of BMW OF NORTH AMERICA, INC.

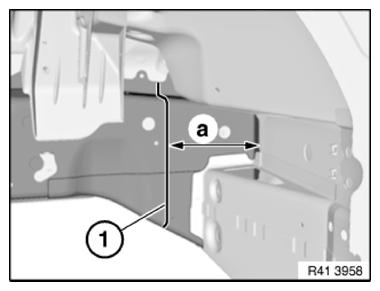

Mark severance cut (1) in accordance with Dimension "a" and cut engine support.

Dimension "a"=140 mm

Fig 4: Identifying Engine Support Severance Cut Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

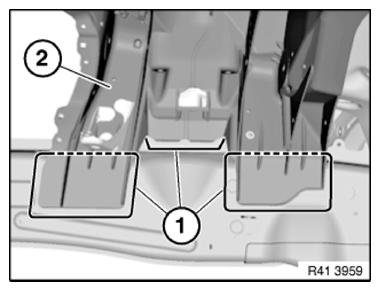

Roughly mark severance cuts (1) and cut.

IMPORTANT: Do not damage aluminium spring strut dome (2).

Fig 5: Identifying Severance Cut Areas And Spring Strut Dome

Courtesy of BMW OF NORTH AMERICA, INC.

Heat ADHESIVE AREAS with hot air blower and release sheet sections (1) from spring strut dome.

IMPORTANT: Do not damage aluminium spring strut dome (2).

Fig 6: Identifying Sheet Sections And Spring Strut Dome

Courtesy of BMW OF NORTH AMERICA, INC.

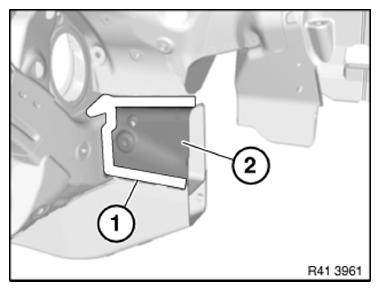

Open welded connections in area (1) and remove engine support section (2).

Fig 7: Identifying Engine Support Section And Weld Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark severance cuts on new parts in accordance with severance cuts on vehicle and cut.

Prepare REINFORCEMENT PLATES at severance cuts.

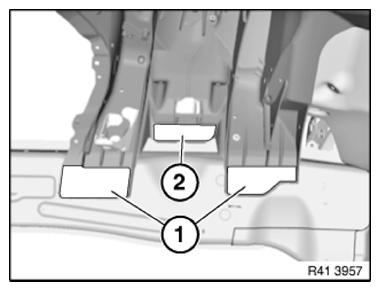

Remove adhesive residue in areas (1).

IMPORTANT: Do not damage aluminium spring strut dome (2).

Fig 8: Identifying Spring Strut Dome And Adhesive Locations

Courtesy of BMW OF NORTH AMERICA, INC.

Then FLAME-COAT bonding surfaces of spring strut dome.

Grind bonding surfaces on engine support blank accordingly. (Structure bonding)

Adjust new parts and reinforcement plates using alignment bracket or universal mount and secure.

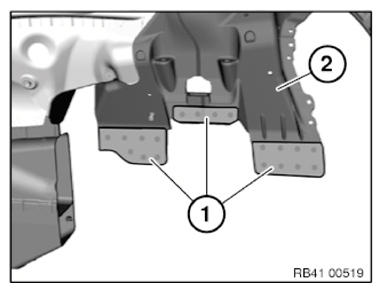

In areas (1) and (2), transfer 6.8 mm diameter bore holes for blind rivets to new part on engine support.

Fig 9: Identifying Rivet Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installing engine support

Clean bonding surfaces with cleaning agent R1.

Apply adhesive K1 to bonding surfaces.

Install new parts and reinforcement plates with alignment bracket or universal mount.

Using blind rivets, rivet new parts in the areas where the rivets are fitted with adhesive N2.

Weld new parts identically to the series in the other gap areas.

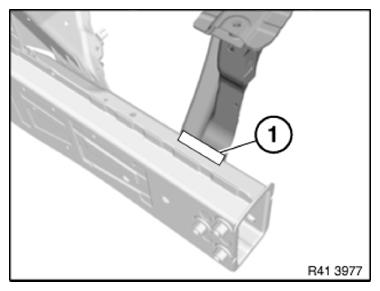

NOTE: The bulkhead cross member (1) is filled with low-flammable cavity foam.
In case of smoke formation, stop the welding procedure and cool the welded area with compressed air if applicable.

Fig 10: Identifying Bulkhead Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.

MAG-weld new part in area (1).

To do so, apply 2 fillet welds at spacing of 15 mm. Length of fillet welds approx. 15 mm.

Fig 11: Identifying MAG-Weld Area

Courtesy of BMW OF NORTH AMERICA, INC.
