41 21... Replacing Inside Left Side Frame With Side Member (B-Pillar Reinforcement)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS for repairs.

Additional setup work: Remove gasoline tank.

Side panel removed

Place vehicle on straightening bench.

The following new body parts are required:

(1) Inner side frame
(2) Shaped part, B-pillar, bottom (not shown)
(3) Shaped part, B-pillar, outer (not shown)

Following CONSUMABLES are required:

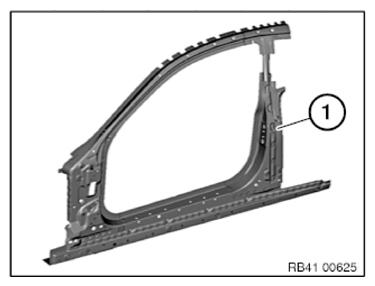

Fig 1: Identifying New Body Parts Required

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Punch rivets N4	6
Punch rivets N3	2
Punch rivets N5	2

Removal of side frame with side member (B-pillar reinforcement)

In addition to removal of SIDE WALL : (Severance cut in sill area offset forwards)

Mark severance cut in accordance with dimension and cut.

IMPORTANT: Cut outer metal panel only.

Dimension "a" = 220 mm from 25 mm diameter hole.

Open welded connections in areas (1).

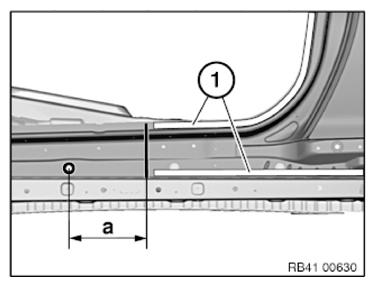

Fig 2: Identifying Severance Cut Dimension And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

In addition to removal of side wall:

Mark severance cut in radius along line (1) and cut.

IMPORTANT: Cut outer metal panel only.

Open welded connections in areas (2).

Fig 3: Identifying Severance Cut Line And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Cut reinforcement plate along line (1).

Open welded connections in areas (2).

Remove part section (3).

Installation note:

Part section (3) is used for installation.

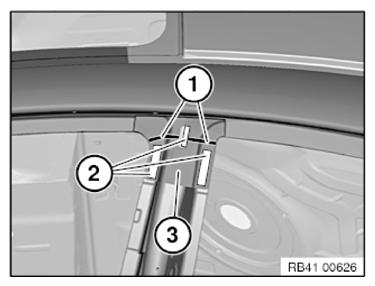

Fig 4: Identifying Cutting Line, Part Section, And Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with dimension and cut.

IMPORTANT: Cut outer metal panel only.
Dimension "a" = 160 mm from 15 mm diameter hole.
Open welded connections in areas (1).
LOOSEN spot-welded adhesive joints in areas (2).
Detach B-pillar reinforcement from cavity sealings (3) and remove.

Fig 5: Identifying Severance Cut Dimension, Spot-Welded Adhesive Joints, Welded Connections, And Cavity Sealings

Courtesy of BMW OF NORTH AMERICA, INC.

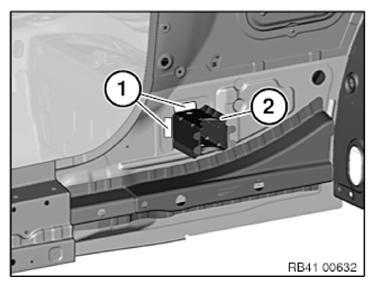

Undo metal active gas welded connections in areas (1) and remove support (2).

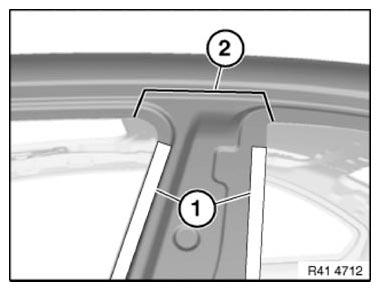

Fig 6: Identifying Support And Gas Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Open weld joint in area (1).

Mark severance cut (2) in accordance with severance cut on vehicle and cut.

Prepare REINFORCEMENT PLATE at severance cut.

Adjust new parts to fit with alignment bracket or universal mounting.

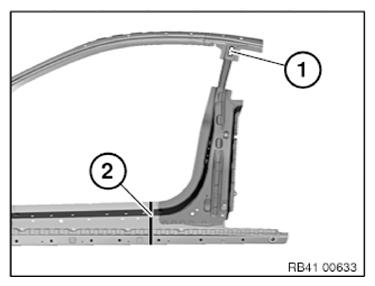

Fig 7: Identifying Severance Cut Line And Welded Joint

Courtesy of BMW OF NORTH AMERICA, INC.

In addition to new part preparation of side wall:

In area (1), create two 4.2 mm dia. bore holes for blind rivetsN3.

(2) Severance cut for replacement of side wall.

(3) Severance cut of side wall offset forwards for replacement of side frame with side member.

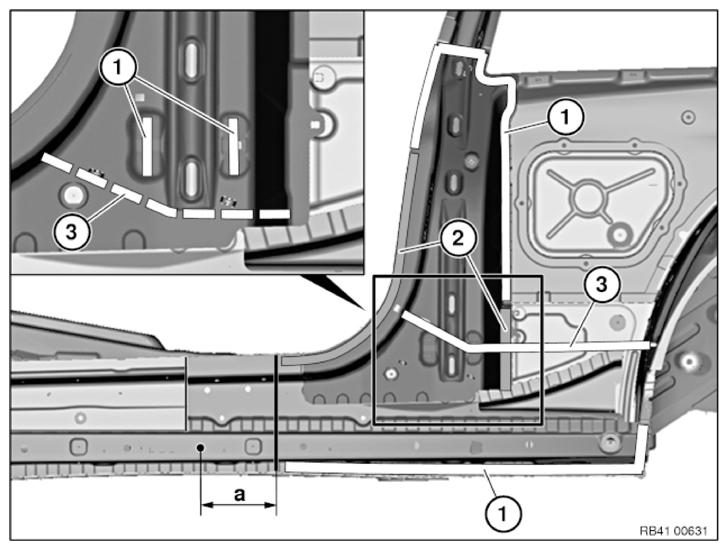

Fig 8: Identifying Bore Hole Area And Severance Cut Lines

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The reinforcement plate (bonding-riveting technology) must be slightly adapted due to the offset severance cut (3).

Installation of side frame with side member (B-pillar reinforcement)

Coat CAVITY SEALINGS with sealant.

Install new parts and reinforcement plates with alignment bracket or universal mount and weld.

In area (1) the floor panel and side member are joined by spot-welding bonding technology.

Apply repair welding spots in area (1) to existing welding spots on vehicle.

This is necessary because the adhesive between the spot flanges acts as an insulator.

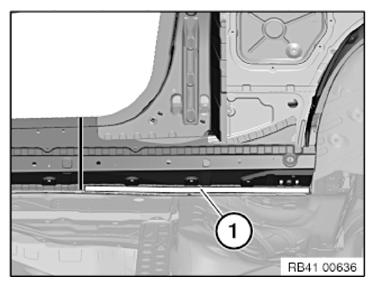

Fig 9: Identifying Welding Spots

Courtesy of BMW OF NORTH AMERICA, INC.

In addition to installation of side wall:

In areas (1) the SIDE WALL is additionally bonded and riveted with 6 punch rivets N4.

In area (2), the side panel is welded.

IMPORTANT: Risk of damage to adhesive.
Avoid generating excessive heat when making the welded connection (2).

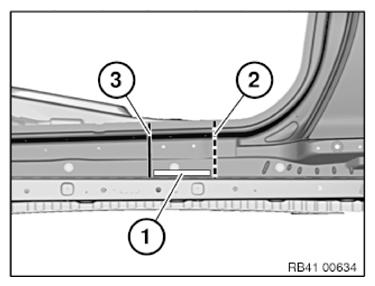

Fig 10: Identifying Bonded/Riveted Areas And Welded Area

Courtesy of BMW OF NORTH AMERICA, INC.

Additional installation of side wall:

In area (1) side wall is additionally bonded and riveted with 2 punch rivets N5.

(2) Severance cut for replacement of side wall.

(3) Severance cut of side wall offset forwards for replacement of side frame with side member.

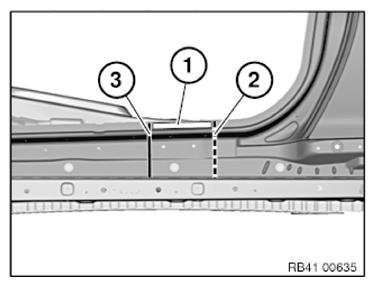

Fig 11: Identifying Bonded/Riveted Area And Severance Cut Lines

Courtesy of BMW OF NORTH AMERICA, INC.
